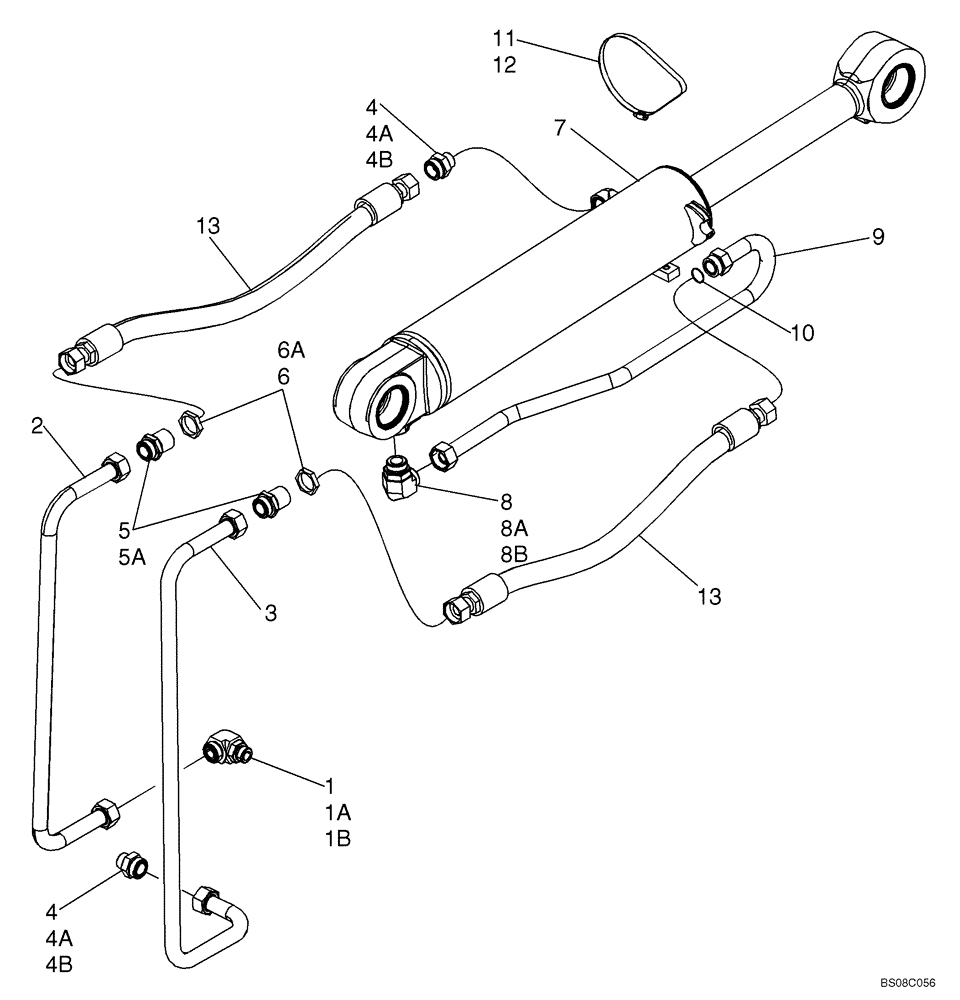

Запчасти Case 721E (08-17) - HYDRAULICS - LOADER BUCKET ( Z-BAR/XR ) (08) - HYDRAULICS

1

700-335

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 1A, 1B

1шт.

1a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

1b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

2

8602613

HYD TUBE

Dump

1шт.

3

8602611

HYD TUBE

Rollback

1шт.

4

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 4A, 4B

2шт.

4a

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

4b

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

5

701-174

UNION,1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

Adapter; Incl. 5A

2шт.

5a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

6

701-922

BHD LOCK NUT,1-11/16" - 12

Incl. 6A

2шт.

6a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

7

REF

INSTRUCTION

Bucket Tilt Cylinder; See Figure 08-35 For Z-Bar Cylinder, 08-34 For XR Cylinder

1шт.

8

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. 8A, 8B

1шт.

8a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

8b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

9

8602125

HYD TUBE

Tilt Cylinder

1шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

391133A1

CLAMP

1шт.

12

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

1шт.

13

8602615

FLEXIBLE HOSE,31.75mm ID x 988mm L, SAE 100R11

Tilt Cylinder; 988 mm (38-7/8 in)

2шт.
