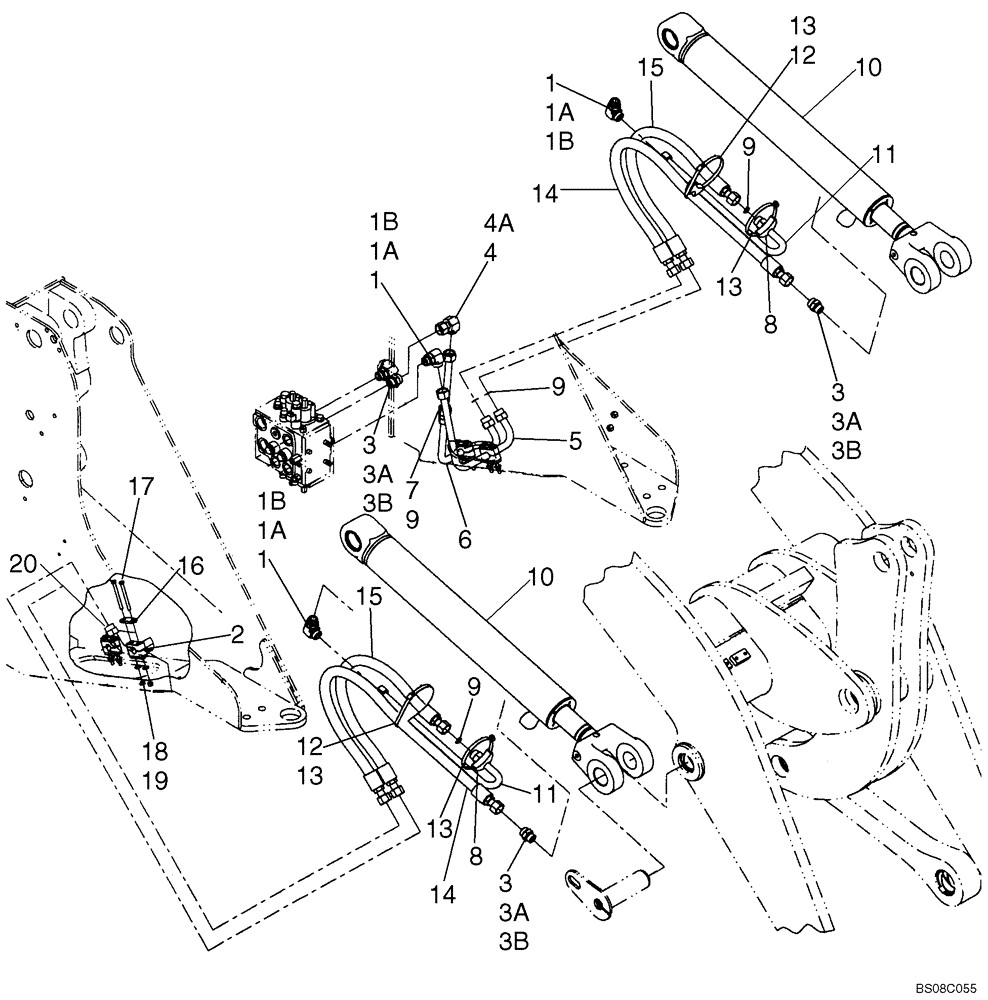

Запчасти Case 721E (08-14) - HYDRAULICS - LOADER LIFT (Z-BAR/XR) (08) - HYDRAULICS

1

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 1A, 1B

3шт.

1a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

1b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

2

367489A1

BLOCK

4шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 3A, 3B

3шт.

3a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

3b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

4

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl. 4A

1шт.

4a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

5

8500519

HYD TUBE

Left Hand, Raise

1шт.

6

8501055

HYD TUBE

Left Hand, Lower, Formed

1шт.

7

8501057

HYD TUBE

Left Hand, Lower, Straight

1шт.

8

391133A1

CLAMP

2шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

10

87318066

LIFT CYLINDER

See Figure 08-37

2шт.

87319194R

REMAN-HYD CYLINDER

721E TIER 3 (8/06-), Reman For New P/N 87318066

2шт.

87319194C

CORE-HYD CYLINDER

Return Number

1шт.

11

8500547

HYD TUBE

Lift Cylinder

2шт.

12

8500550

BLOCK

2шт.

13

214-14104

HOSE CLAMP,155.45mm - 177.8mm

4шт.

14

87659631

HYDRAULIC HOSE,25.4mm ID x 1525mm L, SAE 100R12

1525 mm (60 in); Lift Rod; Replaces 8500551

2шт.

15

87659635

HYDRAULIC HOSE,25.4mm ID x 1103mm L, SAE 100R12

1103 mm (43-7/16 in); Lift; Replaces 8500552

2шт.

16

367658A1

PLATE

8шт.

17

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

8шт.

18

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

20

REF

INSTRUCTION

See Ride Control Or Non Ride Control Hydraulics For Correct Tubes And Fittings

1шт.
