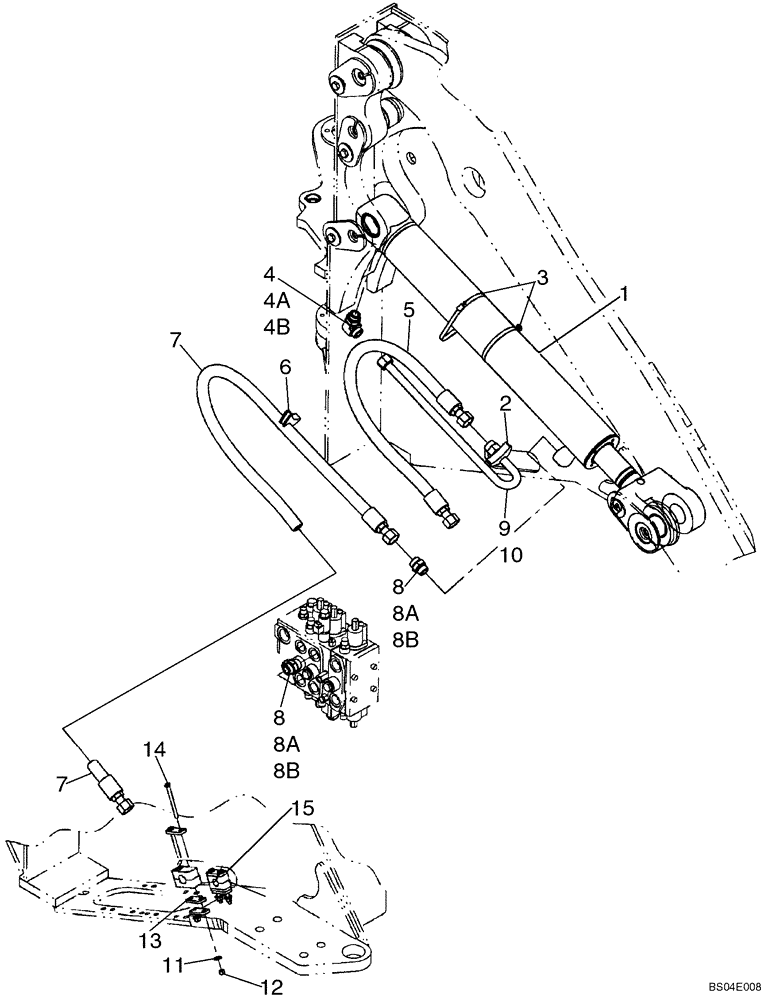

Запчасти Case 721E (08-13) - HYDRAULICS - LOADER LIFT ( XT ) RIGHT SIDE COMPONENTS (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER LIFT RIGHT SIDE COMPONENTS

1шт.

1

87318066

LIFT CYLINDER

See Figure 08-37

2шт.

87319194R

REMAN-HYD CYLINDER

721E TIER 3 (8/06-), Reman For New P/N 87318066

2шт.

87319194C

CORE-HYD CYLINDER

Return Number

1шт.

2

391133A1

CLAMP

1шт.

3

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

4

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 4A, 4B

1шт.

4a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

4b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

87439689

FLEXIBLE HOSE,25.4mm ID x 1223mm L, SAE 100R12

1223mm ( 48 1/8 in ); Lift Base

1шт.

6

8500550

BLOCK

Clamp

1шт.

7

87439688

FLEXIBLE HOSE,25.4mm ID x 1655mm L, SAE 100R12

1525 mm (60 in); Lift Rod

1шт.

8

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 8A, 8B

2шт.

8a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

8b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

8500547

HYD TUBE

Lift Cylinder

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

367658A1

PLATE

Clamp Cover

6шт.

14

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

15

367489A1

BLOCK

2шт.
