(08-12) - HYDRAULICS - LOADER LIFT ( XT ) LEFT SIDE COMPONENTS

Запчасти Case 721E (08-12) - HYDRAULICS - LOADER LIFT ( XT ) LEFT SIDE COMPONENTS (08) - HYDRAULICS

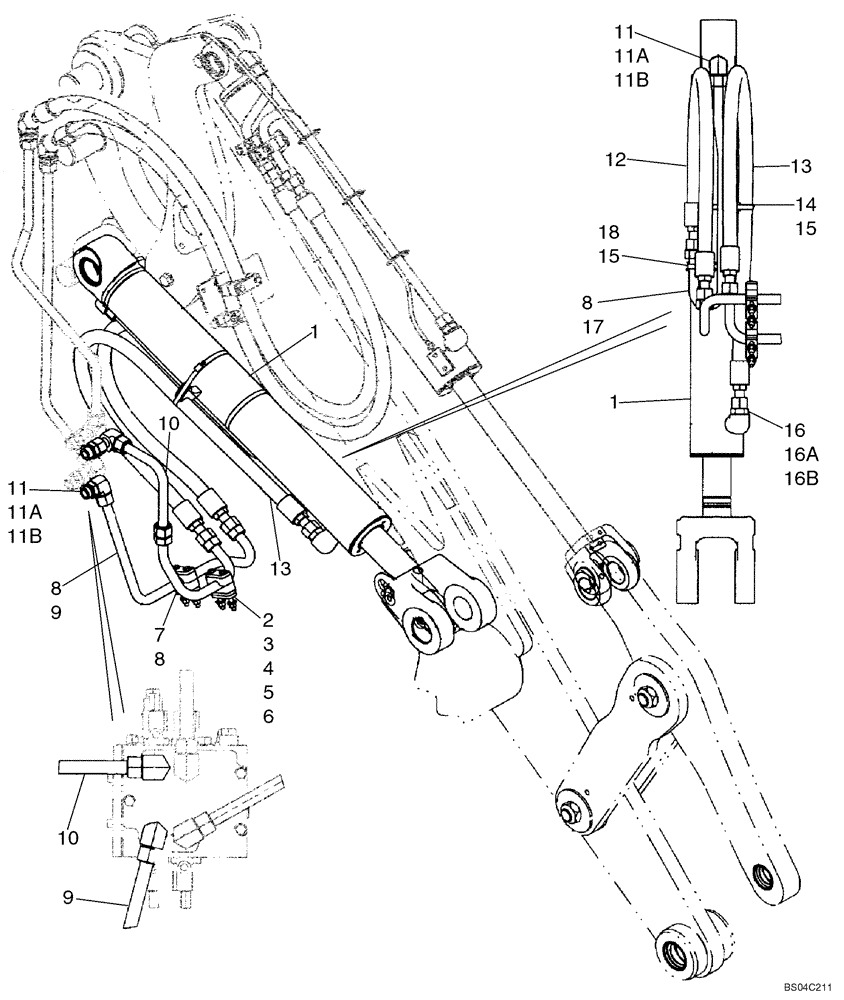

Схема запчастей Case 721E - (08-12) - HYDRAULICS - LOADER LIFT ( XT ) LEFT SIDE COMPONENTS (08) - HYDRAULICS
7
10
11
1
14
8
18
15
9
11
3
17
10
11b
15
11a
2
6
16a
4
12
1
8
16b
11b
11a
8
9
13
16
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LOADER LIFT LEFT SIDE COMPONENTS

1шт.

1

87318066

LIFT CYLINDER

See Figure 08-37

2шт.

87319194R

REMAN-HYD CYLINDER

721E TIER 3 (8/06-), Reman For New P/N 87318066

2шт.

87319194C

CORE-HYD CYLINDER

87319194C

1шт.

2

367489A1

BLOCK

2шт.

3

367658A1

PLATE

6шт.

4

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

7

87444556

HYD TUBE,25 mm OD

Left Hand; Raise

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

4шт.

9

87439731

HYD TUBE

Left Hand; Lower

1шт.

10

87444554

HYD TUBE,25 mm OD x 204, 155 mm L

Left Hand; Lower

1шт.

11

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 11A, 11B

2шт.

11a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

11b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

12

87439689

FLEXIBLE HOSE,25.4mm ID x 1223mm L, SAE 100R12

1223mm (48-1/8 in); Lift, Base

1шт.

13

87439688

FLEXIBLE HOSE,25.4mm ID x 1655mm L, SAE 100R12

1525 mm (60 in); Lift Rod

1шт.

14

8500550

BLOCK

Clamp

2шт.

15

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

16

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 16A, 16B

2шт.

16a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

16b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

17

8500547

HYD TUBE

Lift Cylinder

1шт.

18

391133A1

CLAMP

1шт.
