Запчасти Case 721E (08-10) - HYDRAULICS - COOLER WITHOUT BYPASS (08) - HYDRAULICS

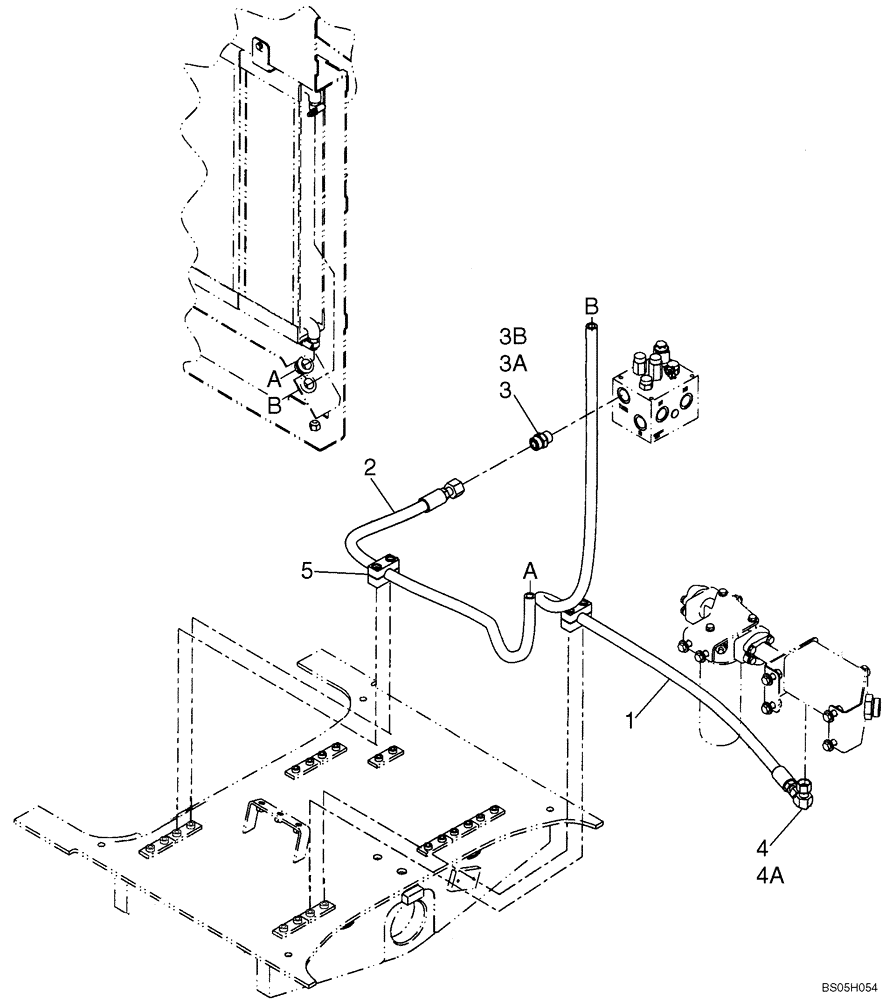

Схема запчастей Case 721E - (08-10) - HYDRAULICS - COOLER WITHOUT BYPASS (08) - HYDRAULICS
2
1
3
4a
3b
5
4
3a

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

NO BYPASS

1шт.

1

87362189

HOSE ASSY.

2088mm ( 82 in ); Cooler Return

1шт.

2

87362190

HOSE ASSY.

1530mm ( 60 in ); Fan Valve To Cooler

1шт.

3

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 3A, 3B

1шт.

3a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 4A

1шт.

4a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

5

367489A1

BLOCK

Mounting

2шт.

Выбрано товаров: 9
