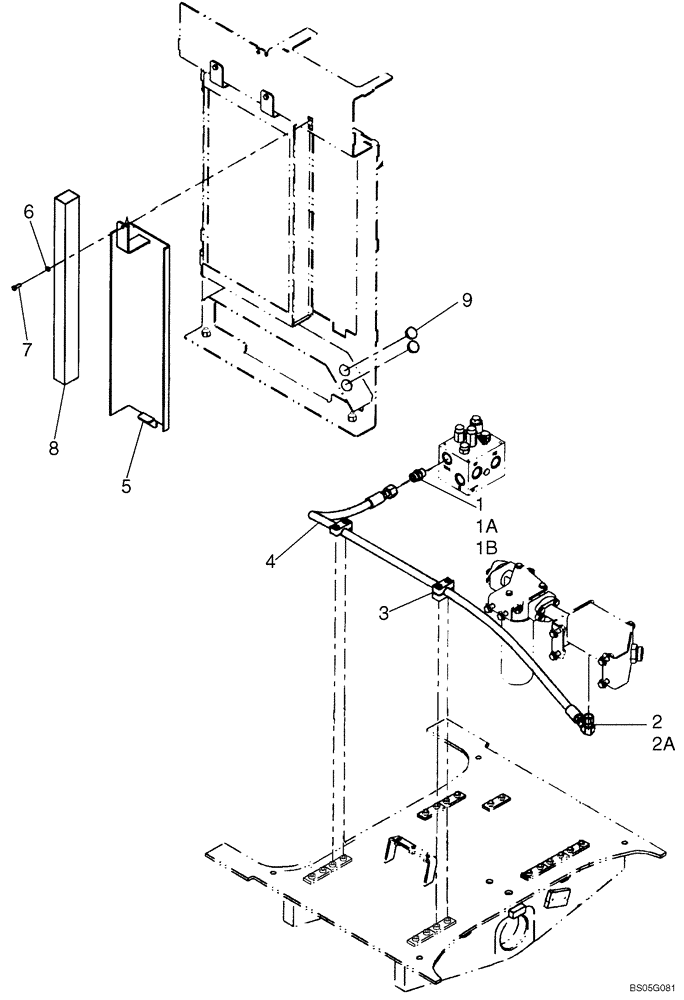

Запчасти Case 721E (08-09) - HYDRAULICS - BYPASS - STANDARD (08) - HYDRAULICS

REF

INSTRUCTION

STANDARD COOLING

1шт.

1

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 1A, 1B

1шт.

1a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

1b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

2

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 2A

1шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

367489A1

BLOCK

Tube Mounting

2шт.

4

8500195

FLEXIBLE HOSE

1962 mm (77 1/4 in); Cooler Bypass

1шт.

5

8501329

MOUNTING PLATE

1шт.

6

892-11008

LOCK WASHER,8mm ID

1шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

8

8500206

SEALING STRIP,65mm W x 734mm L x 50mm Thk

1шт.

9

353-414

PLUG,Dome, 1.375" Hole, Nylon

2шт.
