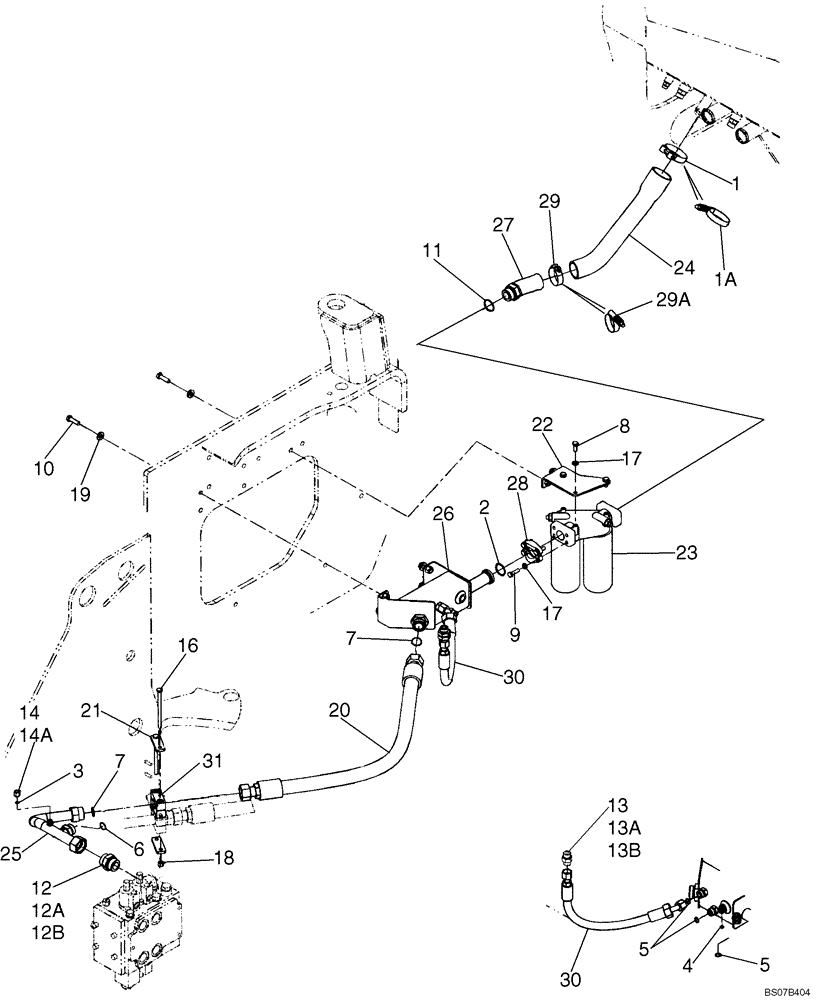

Запчасти Case 721E (08-06) - HYDRAULICS - RESERVOIR RETURN (08) - HYDRAULICS

1

214-2166

CLAMP,74.68mm - 82.55mm

If Used

1шт.

1a

L115548

CLAMP,57.15mm - 79.38mm

If Used

1шт.

2

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

7

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

2шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

9

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

11

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

12

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl 12A, 12B

1шт.

12a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

12b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

13

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 13A, 13B

1шт.

13a

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Face Seal

1шт.

13b

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

701-917

CAP,Hex, 9/16" - 18 Female ORFS

Incl 14A

1шт.

14a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

16

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

20

8500235

FLEXIBLE HOSE,31.75mm ID x 1103mm L, SAE 100R1

1103 mm (43-7/16 in); Articulation Return

1шт.

21

8500858

PLATE

Clamp Cover

2шт.

22

8500501

BRACKET

Filter Mounting

1шт.

23

87308943

FILTER ASSY

See Figure 08-03

1шт.

24

87318399

HYDRAULIC HOSE,50.80 mm ID, 63.50 mm ID x 429.00 mm

Filter Return

1шт.

25

87450466

HYD TUBE

Valve Return

1шт.

26

87369342

MANIFOLD ASSY

Hydraulic Oil Return

1шт.

27

390208A2

ADAPTER

Filter

1шт.

28

A12301

CLAMP,Half

Split

2шт.

29

L126871

CLAMP

T-Bolt, If Used

1шт.

29a

254026A1

HOSE CLAMP,44.45mm - 66.67mm

If Used

1шт.

30

87369394

HOSE ASSY.

600mm (23-1/2 in); Steering Return Adapter

1шт.

31

87452747

CLAMP,33.4mm ID

Tube Mounting

1шт.
