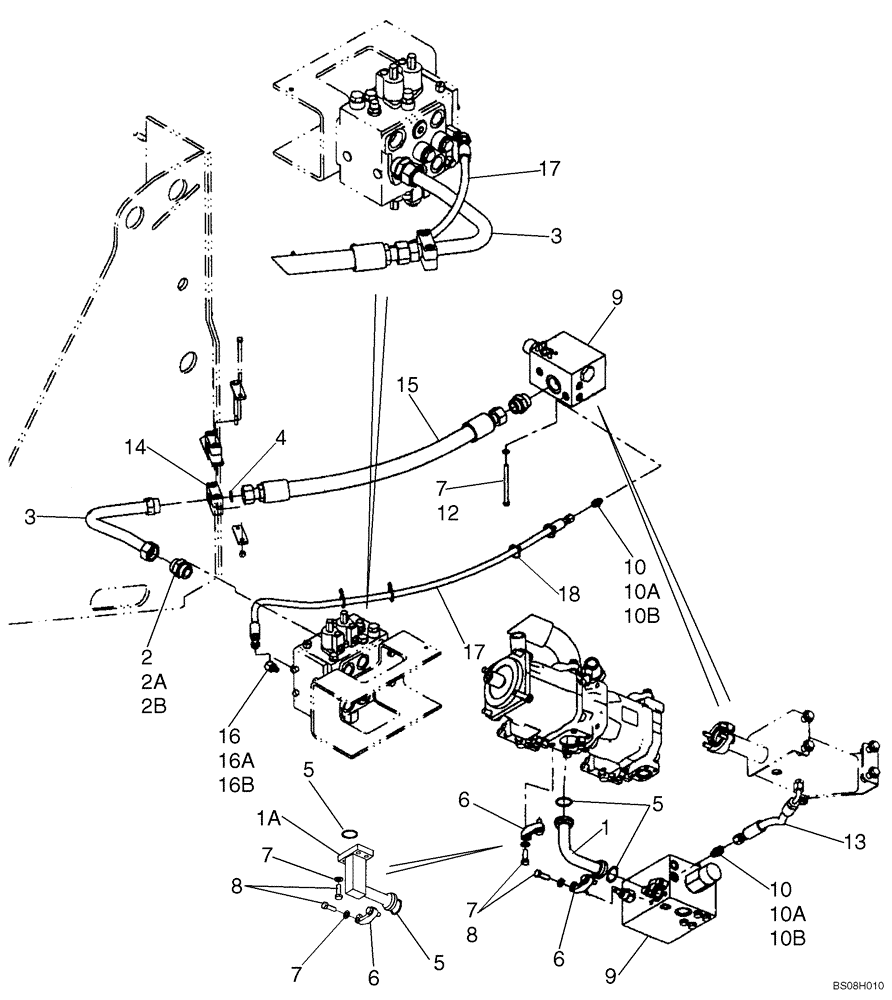

Запчасти Case 721E (08-05) - HYDRAULICS - PUMP/PRIORITY VALVE (08) - HYDRAULICS

1

87367885

HYD TUBE,21.4 mm ID x 25.40/1 mm OD x 117, 97 mm L

Pump Discharge; No Longer Available, Order Tube 87758250, Ref. 1A

1шт.

1a

87758250

TUBE,116.7, 97 mm L

Pump Discharge

1шт.

2

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. 2A, 2B

2шт.

2a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3

84140823

TUBE,32 mm OD

Valve Supply; Replaces 87368206

1шт.

4

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

6

A12306

FLANGE

Split Half Clamp 1 in

2-4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

9

87539260

VALVE

Steering Priority, See Figure 08-48

1шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 10A, 10B

1шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

892-11012

LOCK WASHER,M12

1шт.

12

827-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 10.9

4шт.

13

87367960

HOSE ASSY.

Priority Tank; 356mm ( 14 in )

1шт.

14

87452747

CLAMP,33.4mm ID

Tube Mounting

1шт.

15

87368421

HOSE ASSY.

Articulation Pressure; 858mm ( 34 in )

1шт.

16

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 16A, 16B

2шт.

16a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

16b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

87368422

HOSE ASSY.

Articulation Load Sense; 1344mm ( 53 in )

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.
