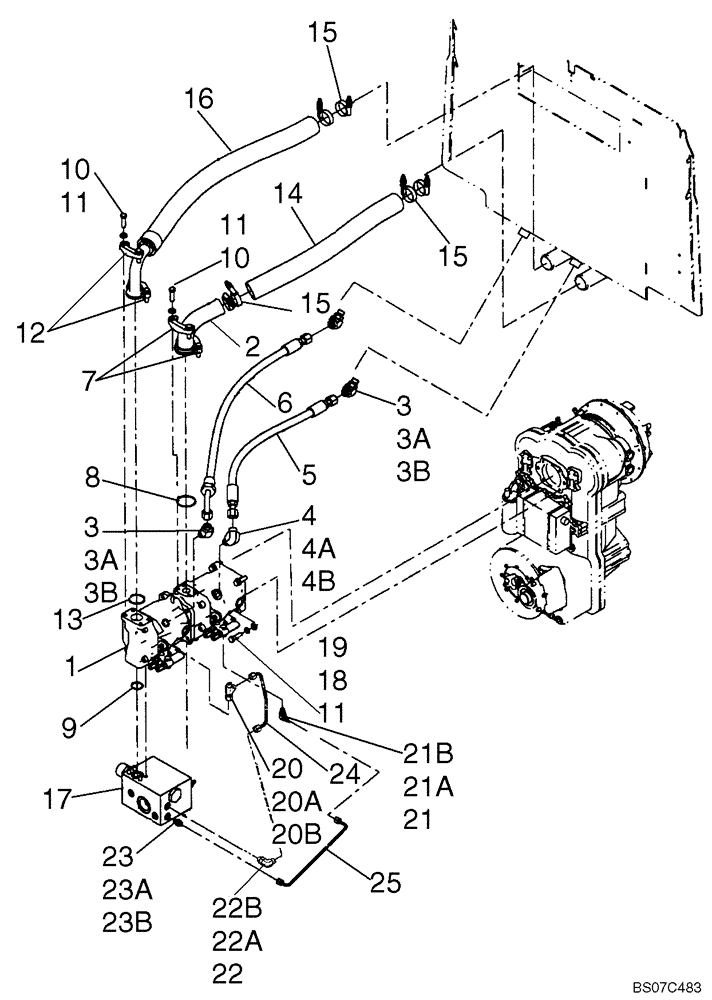

Запчасти Case 721E (08-04) - HYDRAULICS - COOLING FRAME TO PUMP/PRIORITY VALVE (08) - HYDRAULICS

1

8500387

HYDRAULIC PUMP

Tandem Pump; Not Serviced As An Assembly; See Figures 08-38 - 08-42

1шт.

2

8602646

TUBE,50.80 mm OD x 130, 100 mm L

Pump Suction

1шт.

3

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 3A, 3B

1шт.

3a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 4A, 4B

1шт.

4a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

84303150

HOSE ASSY.

Large Case Drain; 598mm ( 23-1/2 in ); Replaces 87318403

1шт.

6

87318402

HOSE ASSY.

Small Case Drain; 876mm ( 34-1/2 in )

1шт.

7

A14141

FLANGE

Split Half Clamp; 2.0 in

2шт.

8

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

9

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

12

A14157

FLANGE

Split Half Clamp; 1.5 in

2шт.

13

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

14

8602648

HYDRAULIC HOSE,50.80 mm ID x 645.00 mm, SAE 100R4 Class 4 Type 2

Large Pump Section

1шт.

15

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

6шт.

16

8501009

FLEXIBLE HOSE

Small Pump Suction; 935 mm (36 13/16 in)

1шт.

17

87539260

VALVE

Manifold Steering Priority; See Figure 08-48

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

19

892-11012

LOCK WASHER,M12

4шт.

20

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 20A, 20B

1шт.

20a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

20b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

21

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. 21A, 21B

1шт.

21a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

21b

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

22

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 23A, 23B

1шт.

22a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

22b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

23

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 23A,23B

1шт.

23a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

23b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

24

87634219

HYD TUBE,0.25" OD

Front Pump

1шт.

25

87367945

HYD TUBE,6.35 mm OD x 300 mm L

Rear Pump

1шт.
