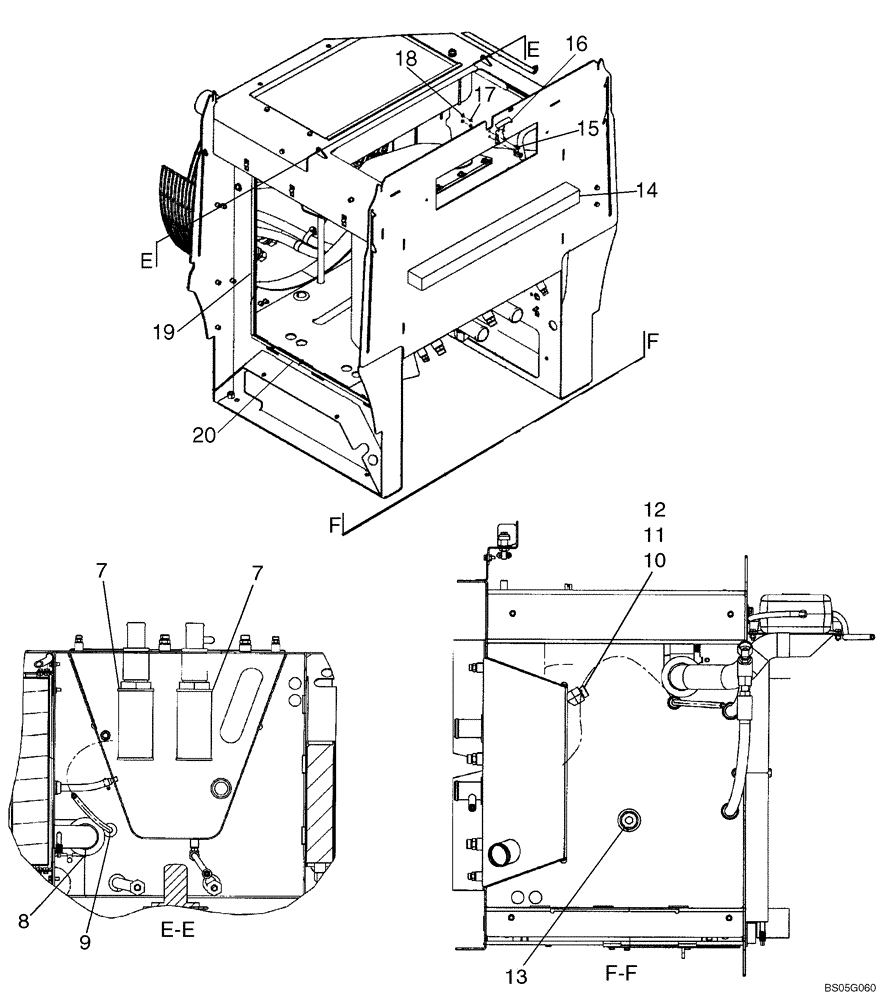

Запчасти Case 721E (08-02) - HYDRAULIC RESERVOIR - FILTER (08) - HYDRAULICS

87306102

FRAME ASSY

Cooling; Incl. 7 - 20

1шт.

7

L128515

STRAINER ELEMENT

Hydraulic Tank

2шт.

8

8500167

SEAL

1шт.

9

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

10

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 11, 12

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

13

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

14

8500206

SEALING STRIP,65mm W x 734mm L x 50mm Thk

Foam

1шт.

15

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

16

384774A1

LATCH

Flexible

1шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

18

824-1405

NUT,M5, Cl 5

2шт.

19

8500133

OIL SEAL

698 mm (27-1/2 in); Cut From 198573C2 Bulk

2шт.

20

87312068

OIL SEAL

630 mm (24-13/16 in); Cut From 198573C2 Bulk

4шт.
