Запчасти Case 721E (07-03D) - HYDRAULICS - BRAKE, MAIN - RESERVOIR (07) - BRAKES

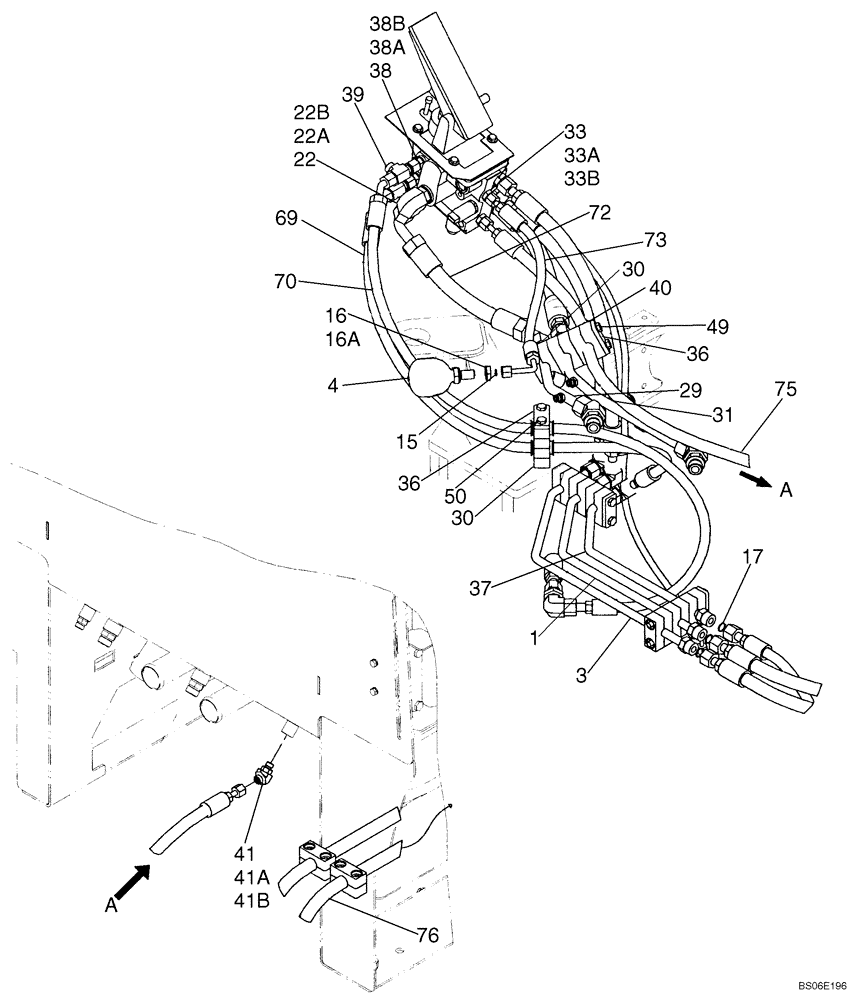

Схема запчастей Case 721E - (07-03D) - HYDRAULICS - BRAKE, MAIN - RESERVOIR (07) - BRAKES
33
33a
38b
41a
50
15
41b
3
29
76
75
49
39
72
22a
33b
36
22b
22
37
36
73
1
31
16
41
30
38a
40
17
70
16a
4
30
38
69

Артикул

Название

Примечание

Количество

1

87326262

TUBE,15.88 mm OD

Brake Supply

1шт.

3

87326263

TUBE,15.88 mm OD

Fan Supply

1шт.

4

8500209

ACCUMULATOR

Parking Brake

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

16

701-909

NUT,11/16" - 16

Incl. 16A

1шт.

16a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

21

87360070

BRAKE VALVE

Main Brake Valve; See Figure 07-05

1шт.

22

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 22A, 22B

2шт.

22a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

22b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

29

87354290

TUBE,19.05 mm OD

Front Brake Accumulator

1шт.

30

379374A1

BLOCK

Tube Mounting; Hose Opening D. 19 mm

2-4шт.

30

367489A1

BLOCK

Tube Mounting; Hose Opening D. 25 mm; If Used

2шт.

31

87529279

TUBE,19.055 mm OD x 424 mm L

Rear Brake Accumulator

1шт.

33

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 33A, 33B

3шт.

33a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

33b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

367658A1

PLATE

Clamp Cover

3шт.

37

87326268

TUBE,15.88 mm OD

Rear Axle Brake

1шт.

38

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 38A, 38B

1шт.

38a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

38b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

39

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 39A

1шт.

39a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

40

8501052

SPECIAL CLAMP

Tube Mounting

1шт.

41

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 41A, 41B

2шт.

41a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

41b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

49

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

50

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

69

87325999

HOSE ASSY.

Rear Axle Brake; 1206mm ( 47-1/2 in )

1шт.

70

87325998

HOSE ASSY.

Front Axle Brake; 1536mm ( 60-1/2 in )

1шт.

72

87521823

HOSE ASSY.

Front Accumulator; 411mm ( 16-1/4 in )

1шт.

73

87325996

HOSE ASSY.

461 mm (18-1/4 in); Parking Brake Accumulator

1шт.

75

87326000

HYDRAULIC HOSE,0.50" mm ID x 1291 mm L

Tank Reference; 1291mm ( 51 in )

1шт.

76

8500174

FLEXIBLE HOSE

1407 mm (55 - 7/16 in); Fan Supply

1шт.

Выбрано товаров: 37
