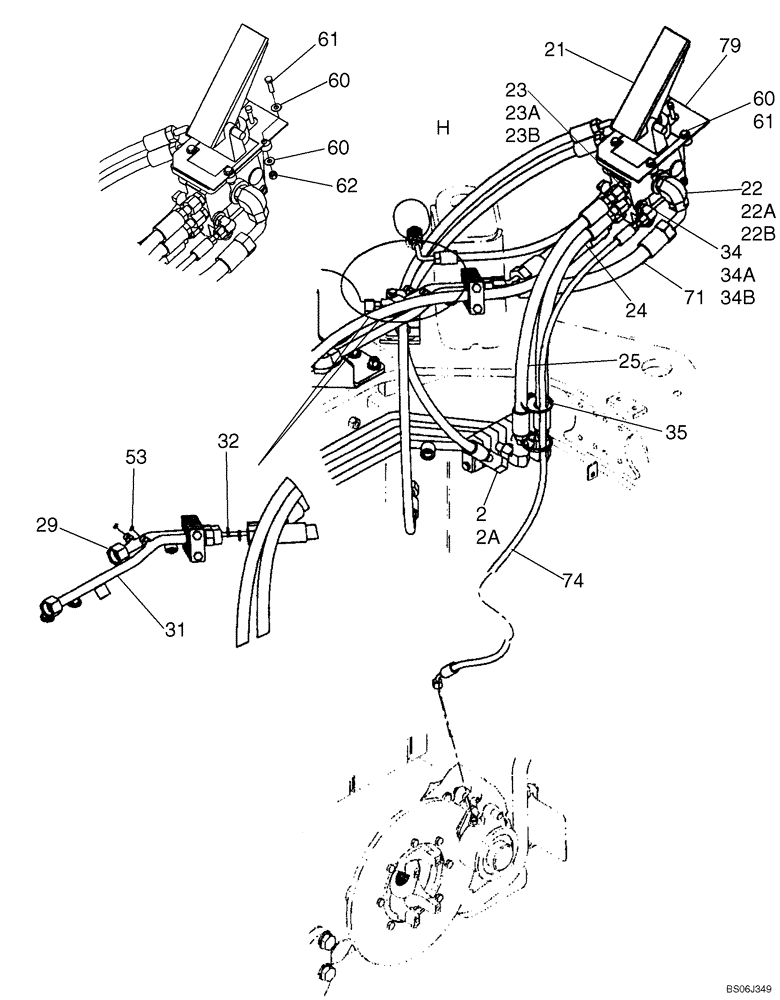

Запчасти Case 721E (07-03C) - HYDRAULICS - BRAKE, MAIN - PARKING BRAKE (07) - BRAKES

REF

INSTRUCTION

MAIN BRAKE VALVE TO PARKING BRAKE

1шт.

2

701-340

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl. 2A

2шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

21

87360070

BRAKE VALVE

See Figure 07-05; For Brake Pressure Switch, See Figure 04-12A; Prior To P.I.N. N8F203816

1шт.

21

87360066

BRAKE VALVE

See Figure 07-05; For Brake Pressure Switch, See Figure 04-12A; P.I.N. N8F203816 And After

1шт.

22

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 22A, 22B

2шт.

22a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

22b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

23

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl. 23A, 23B

2шт.

23a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

23b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

87354481

HOSE ASSY.

Brake Pump Discharge; 618mm ( 24-1/3 in )

1шт.

25

87354480

HOSE ASSY.

Brake Valve Discharge; 668mm ( 26-1/4 in )

1шт.

29

87354290

TUBE,19.05 mm OD

Front Brake Accumulator

1шт.

31

87529279

TUBE,19.055 mm OD x 424 mm L

Rear Brake Accumulator

1шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

34

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 34A, 34B

1шт.

34a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

34b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

53

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

60

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

61

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

Replaces 627-8030 M8 x 30 Bolt Used On Some Models

4шт.

62

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

71

87377313

HOSE ASSY.

Rear Accumulator; 448 mm ( 17-1/2 in ); If Used

1шт.

71

87325995

HOSE ASSY.

Rear Accumulator; 439 mm ( 17-9/32 in ); If Used

1шт.

74

87325997

HOSE ASSY.

Parking Brake; 1070mm (43 in )

1шт.

79

87607227

PLATE

Brake Valve; Replaces Brake Valve Plate 87534048 Used On Some Models

1шт.
