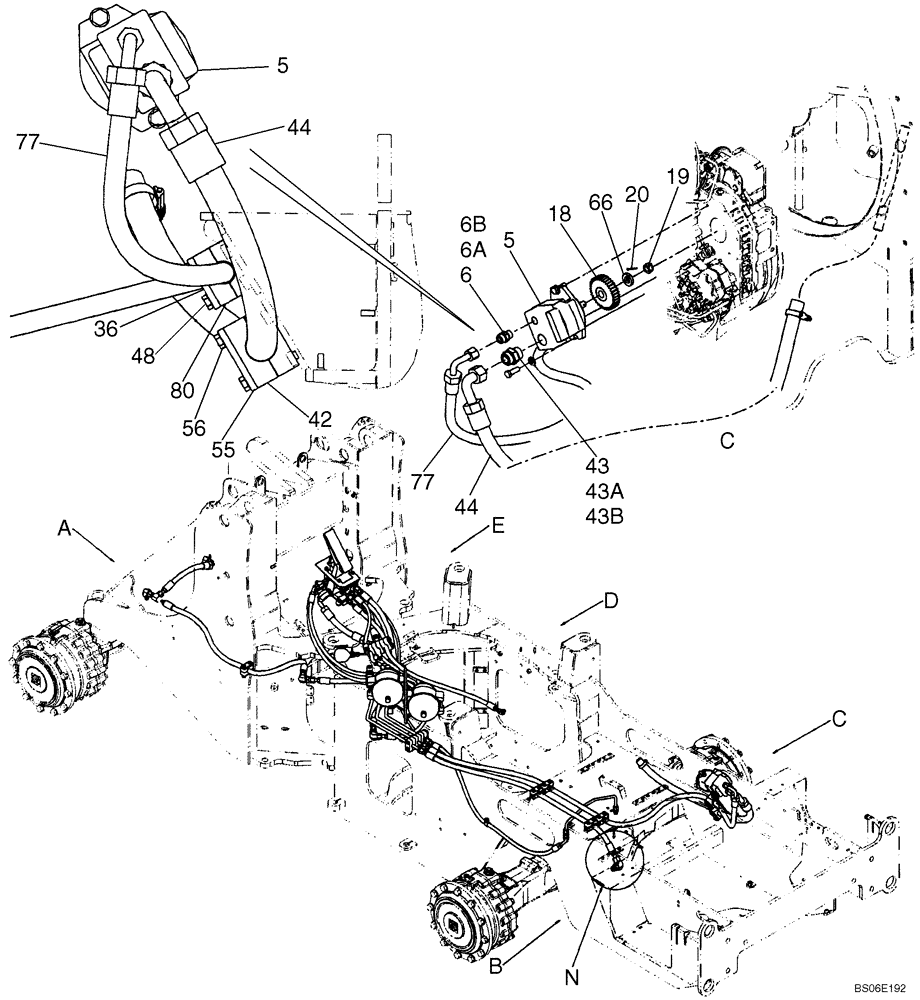

Запчасти Case 721E (07-03) - HYDRAULICS - BRAKE, MAIN - PUMP (07) - BRAKES

5

87342166

HYDRAULIC PUMP,23.6 CC

Brake; See Figure 07-04

1шт.

87342166R

REMAN-HYD PUMP

721E TIER 3 (NA) (8/06-)

1шт.

87342166C

CORE-INJECTION PUMP

Return Number

1шт.

6

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 6A, 6B

1шт.

6a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

18

87389871

GEAR

Accessory Drive

1шт.

19

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

20

733-3232

COTTER PIN,M3.2 x 32

1шт.

36

367658A1

PLATE

Clamp Cover

1шт.

42

8500621

BLOCK

Tube Mounting

1шт.

43

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 9A, 9B

1шт.

43a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

43b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

44

87377337

HOSE ASSY.

1043mm ( 41 in ); Brake Pump Suction

1шт.

48

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

4шт.

55

8500858

PLATE

Clamp Cover

1шт.

56

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

65

353036A1

HOSE CLAMP,32mm - 54mm

Constant Torque

1шт.

66

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mounting

1шт.

77

87553178

HOSE ASSY.,15.88mm ID x 2514mm L, SAE 100R17

2394 mm ( 94-1/4 in ); Brake Pump Pressure

1шт.

80

8606002

CLAMP

Tube Mounting

1шт.
