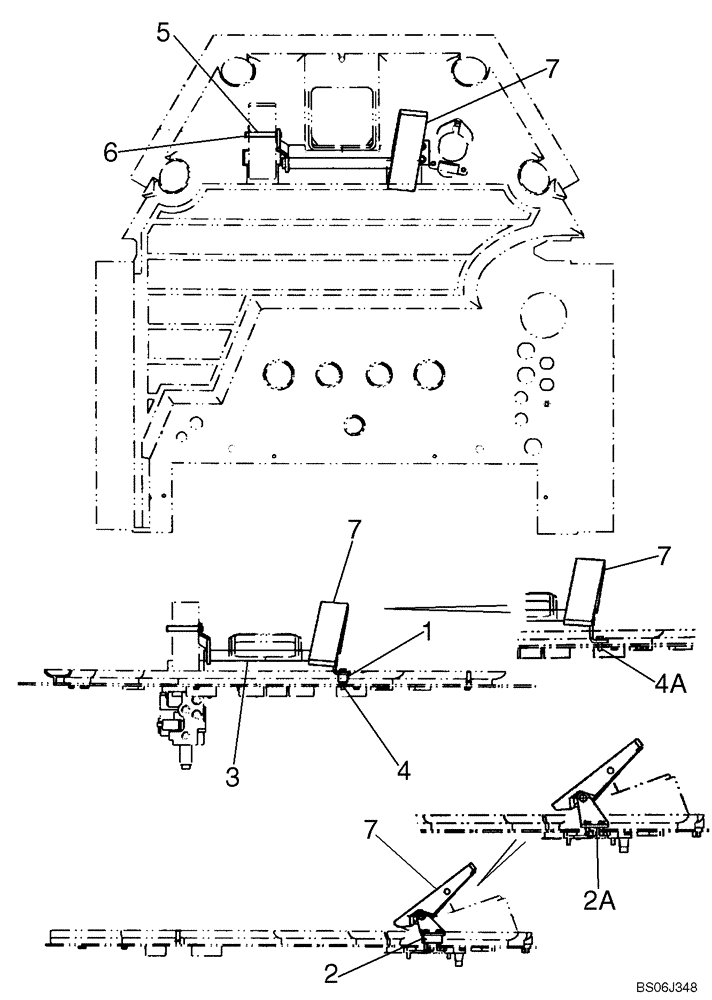

Запчасти Case 721E (07-02) - BRAKE PEDALS - RIGHT HAND (07) - BRAKES

REF

INSTRUCTION

RIGHT HAND PEDAL

1шт.

1

383873A1

BLOCK

If Used

1шт.

2

8603085

BRACKET

If Used, Used with block

1шт.

2a

87568400

MOUNTING PARTS

If Used, Used without block

1шт.

3

87542219

PEDAL ASSY.

Tag-Along Pedal

1шт.

4

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

If used, Used with block

2шт.

4a

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

If Used, Used without Block

2шт.

5

383868A1

PIN

1шт.

6

800-44012

SNAP RING,M12, Ext

2шт.

7

383869A2

RUBBER PEDAL PAD

Pad Pedal Cover

1шт.
