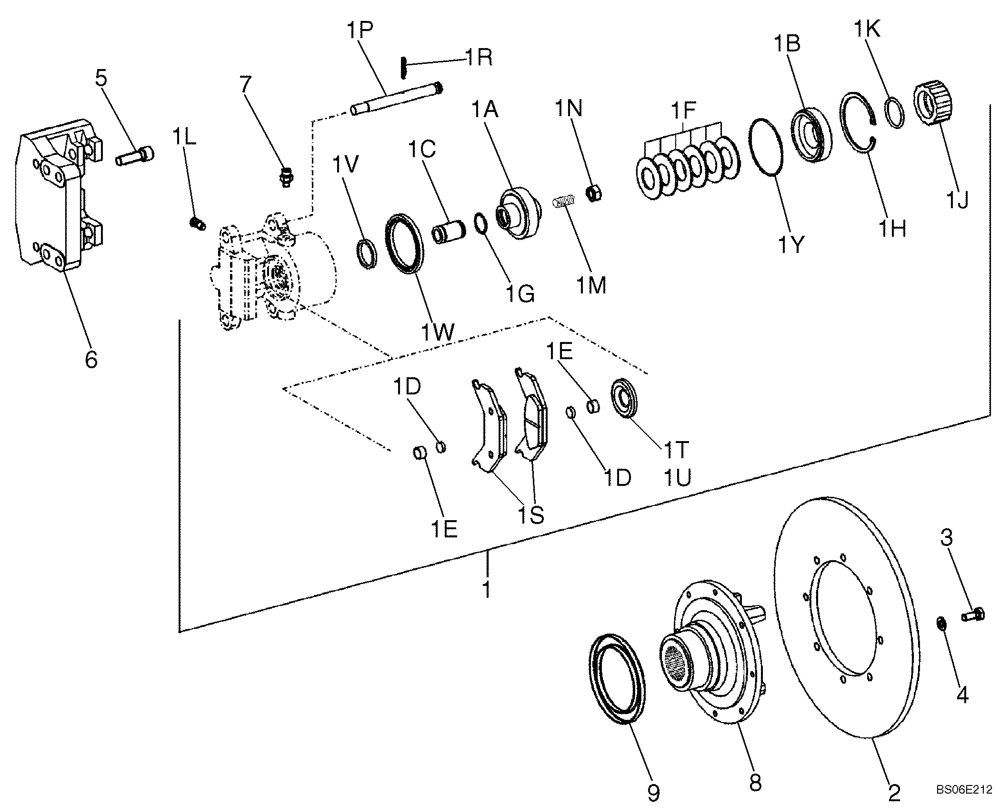

Запчасти Case 721E (07-01) - BRAKE, PARKING (07) - BRAKES

8500050

TRANSMISSION

See Figures 06-03 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, P.I.N. N8F203816 - N8F204594, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

8605548

REMAN-TRANSMISSION

721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

1

8603478

BRAKE ASSY.

Incl. 1A - 1Y; Incl. Brake Caliper, Which Is Not Serviced Separately, Serial Range: -N9F206987

1шт.

1

8603478R

REMAN-BRAKE ASSY.

, Serial Range: -N9F206987

1шт.

1

8603478C

CORE-BRAKE ASSY.

Return Number

1шт.

1

84252195

PARKING BRAKE

, Start Serial: N9F206988

1шт.

1a

8603332

PISTON

1шт.

1b

8603333

PRESSURE RING

1шт.

1c

8603334

PIN

1шт.

1d

8603336

MAGNET

2шт.

1e

8603337

RING

2шт.

1f

8603341

BELLEVILLE WASHER

6шт.

1g

8603343

O-RING

1шт.

1h

8603345

RING

1шт.

1j

87715376

SCREW

CAP, Replaces 8603346

1шт.

1k

8603347

O-RING

1шт.

1l

8603348

BREATHER

1шт.

1m

8603349

SET SCREW

1шт.

1n

8603350

NUT

1шт.

1p

8603540

PIN

2шт.

1r

8603541

PIN

2шт.

1s

87715377

KIT

(2) Brake Pads; Replaces 8603335

1шт.

1s

84252208

BRAKE PAD

1шт.

1t

87439453

SEAL KIT

1шт.

1u

NSS

NOT SOLD SEPARAT

Dust Cap; Order 87439453

1шт.

1v

NSS

NOT SOLD SEPARAT

Ring; Order 87439453

1шт.

1w

NSS

NOT SOLD SEPARAT

Ring; Order 87439453

1шт.

1y

NSS

NOT SOLD SEPARAT

Ring; Order 87439453

1шт.

2

8603328

BRAKE DISC

1шт.

3

626-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

5

8603652

STUD

M14 x 45

4шт.

6

8603330

PLATE

1шт.

7

87522172

FITTING

Screw In Sleeve

1шт.

8

8604720

FLANGE

Used On 8500050, 87671889 Transmissions

1шт.

8

86989637

COUPLING FLANGE

Used On 87738820 Transmission

1шт.

9

8604719

SEAL

Used On 8500050 Transmission

1шт.

9

87757169

SCREEN

Used On 87671889, 87738820 Transmissions

1шт.
