Запчасти Case 721E (06-55) - WHEELS (06) - POWER TRAIN

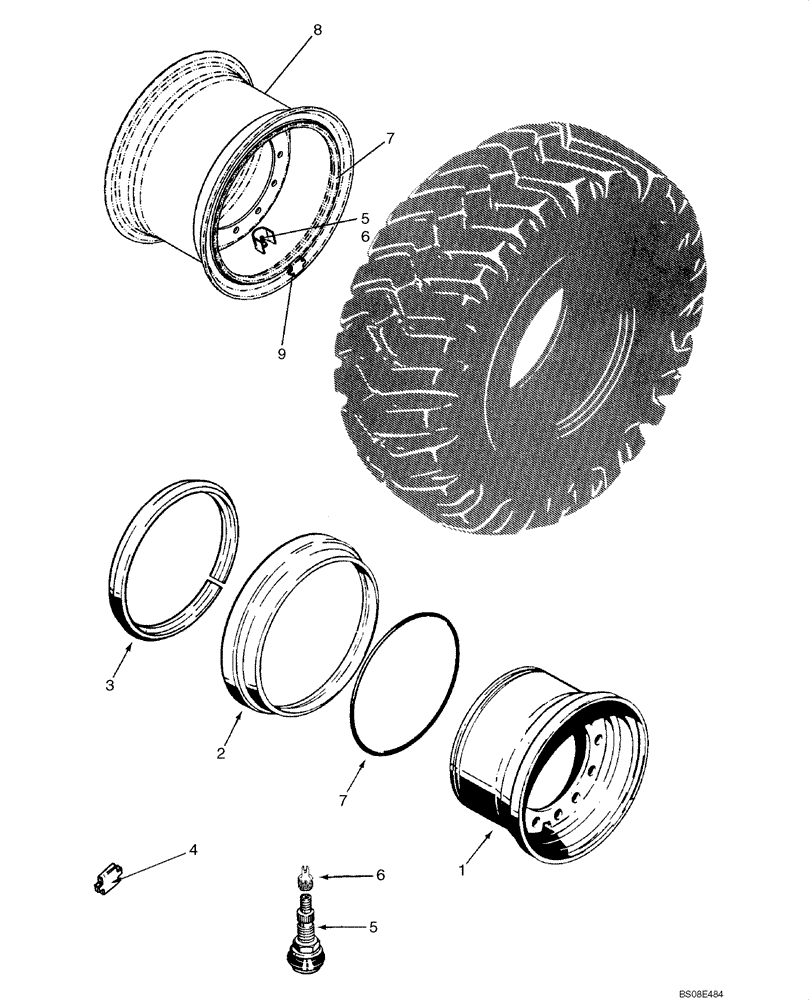

Схема запчастей Case 721E - (06-55) - WHEELS (06) - POWER TRAIN
5
7
6
2
3
9
1
8
6
7
5
4

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

FOR 20.5 X 25 TIRES - THREE PIECE WHEEL

1шт.

87492748

WHEEL ASSY

Titan, Tan, Stamped With Titan P/N 515194195 Near Bolt Holes; Incl. Refs. 1 - 4, 7; If Used

4шт.

1

NSS

NOT SOLD SEPARAT

Rim; Wheel

1шт.

2

S301694

RING

Side

1шт.

3

A19100

LOCKING RING

Locking

1шт.

4

S301695

BLOCK DRIVER

Key

1шт.

5

A20058

VALVE STEM

Incl. Ref. 6

4шт.

6

NSS

NOT SOLD SEPARAT

Cap

4шт.

7

A19101

O-RING,6.6mm Thk x 590.55mm ID

8шт.

87364633

WHEEL ASSY

Solideal, Tan, With Solideal Marking And Job Number Stamp Near Bolt Holes; Incl. 8, 9; Used with Refs. 5 - 7; If Used

4шт.

8

NSS

NOT SOLD SEPARAT

Rim, Wheel; Lockring And Sidering Not Serviced Separately

1шт.

9

87551851

KEY

Driver

1шт.

Выбрано товаров: 12
