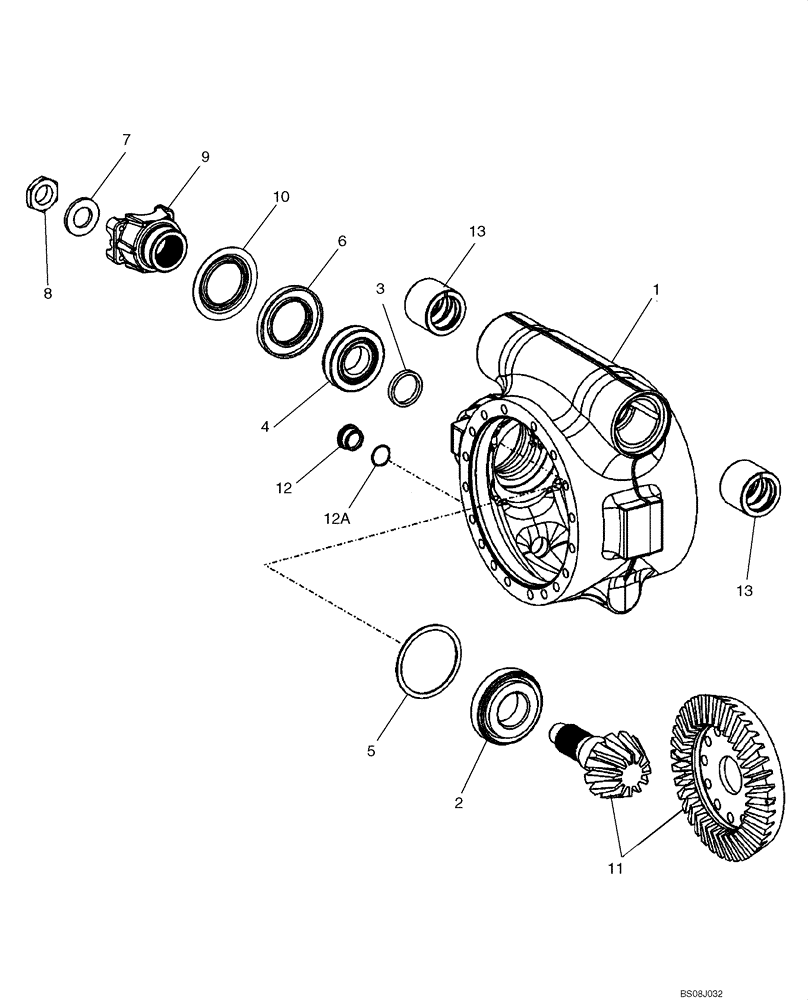

Запчасти Case 721E (06-48A) - AXLE, REAR - DIFFERENTIAL CARRIER - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87550689

REAR AXLE

See Figures 06-44A, 06-45A, 06-46A, 06-47A, 06-48A; P.I.N. N8F203816 And After

1шт.

87550689R

REMAN-REAR AXLE

721E WHEEL LOADER TIER 3 (NA), DIFFERENTIAL CARRIER P.I.N. N8F203816 AND AFTER (8/06-)

1шт.

87550689C

CORE-REAR AXLE

Return Number

1шт.

1

87496677

HOUSING

Rear Axle

1шт.

2

8603257

ROLLER BEARING,60mm ID x 130mm OD x 33.5mm W

1шт.

3

8603239

SPACER,8.80 mm

8.8 mm

1шт.

3

8603789

SPACER,8.70 mm

8.7 mm

1шт.

3

8603794

SPACER,8.60mm

8.6 mm

1шт.

3

8603793

SPACER,8.50 mm

8.5 mm

1шт.

3

8603792

SPACER,8.40 mm

8.4 mm

1шт.

3

8603791

SPACER,8.30 mm

8.3 mm

1шт.

3

8603240

SPACER,8.90 mm

8.9 mm

1шт.

3

8603241

SPACER,9.10 mm

9.1 mm

1шт.

3

8603242

WASHER,9.20 mm

9.2 mm

1шт.

3

8603243

SPACER,9.30 mm

9.3 mm

1шт.

3

8603244

SPACER,9.40 mm

9.4 mm

1шт.

4

8603258

ROLLER BEARING,50mm ID x 80mm OD x 20mm W

1шт.

5

8603259

SHIM,0.7mm Thk

1шт.

5

8603260

SHIM,0.8mm Thk

1шт.

5

8603261

SHIM,0.9mm Thk

1шт.

5

8603262

SHIM,1.0mm Thk

1шт.

5

8603291

SHIM,1.2mm Thk

1шт.

5

8603290

SHIM,1.3mm Thk

1шт.

5

8603289

SHIM,1.4mm Thk

1шт.

5

8603288

SHIM,1.5mm Thk

1шт.

5

8603287

SHIM,1.6mm Thk

1шт.

5

8603286

SHIM,1.7mm Thk

1шт.

5

8603285

SHIM,1.8mm Thk

1шт.

5

8603284

SHIM,1.9mm Thk

1шт.

5

8603283

SHIM,2.0mm Thk

1шт.

5

8603264

SHIM,1.1mm Thk

1шт.

6

8603247

SEAL,75mm ID x 125mm OD

1шт.

7

8603248

WASHER,36mm ID x 64.6mm OD x 5.8mm Thk

1шт.

8

8605616

NUT

1шт.

9

8603266

FLANGE

1шт.

10

87742958

PROTECTOR

Sheet

1шт.

11

87485971

GEAR SET

Set

1шт.

12

87521428

PLUG

Screw M36 x 1.5, Incl. Ref. 12A

2шт.

12a

8605636

O-RING,2.2mm Thk x 33mm ID

1шт.

13

8603827

BUSHING,72.2mm ID x 102mm OD x 75mm L

Bearing

1шт.
