(06-47A) - AXLE, REAR - DIFFERENTIAL - P.I.N. N8F203816 AND AFTER

Запчасти Case 721E (06-47A) - AXLE, REAR - DIFFERENTIAL - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

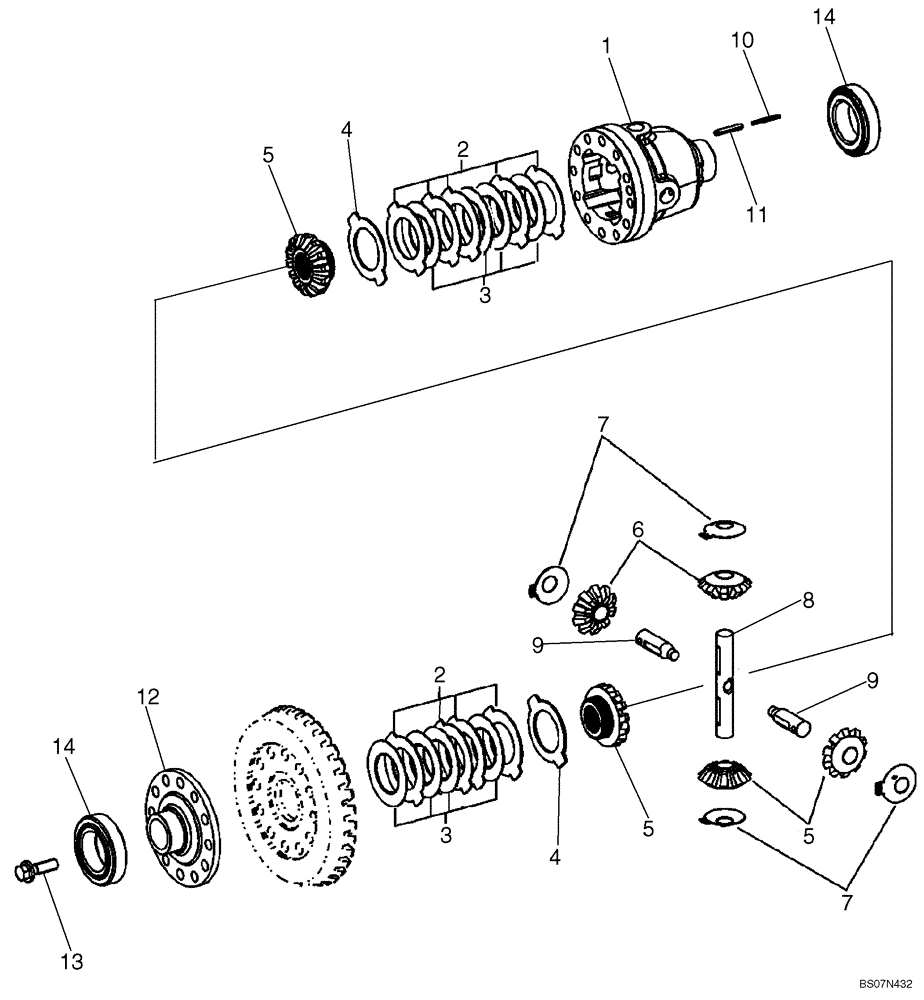

Схема запчастей Case 721E - (06-47A) - AXLE, REAR - DIFFERENTIAL - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN
4
10
11
2
6
5
12
9
8
13
14
5
3
1
2
3
7
7
4
5
14
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87550689

REAR AXLE

See Figures 06-44A, 06-45A, 06-46A, 06-47A, 06-48A; P.I.N. N8F203816 And After

1шт.

87550689R

REMAN-REAR AXLE

721E WHEEL LOADER TIER 3 (NA), DIFFERENTIAL P.I.N. N8F203816 AND AFTER (8/06-)

1шт.

87550689C

CORE-REAR AXLE

Return Number

1шт.

87745599

DIFFERENTIAL ASSY

Incl. Refs. 1 - 14

1шт.

1

87742938

DIFFERENTIAL

1шт.

2

87742939

CLUTCH PLATE

CLUTCH DISK Outer

1шт.

2

87742940

CLUTCH PLATE

CLUTCH DISK Outer

1шт.

2

87742941

DISC,Axle, Friction

CLUTCH DISK Outer

1шт.

3

87742942

CLUTCH DISC

CLUTCH DISK Inner

8шт.

4

87742943

THRUST WASHER

Thrust

2шт.

5

87742944

BEVEL GEAR

Axle

2шт.

6

87742945

BEVEL GEAR

Differential

4шт.

7

87742946

THRUST WASHER

Thrust

4шт.

8

87742956

AXLE DIFFERENTIAL

Differential

1шт.

9

87742957

AXLE DIFFERENTIAL

Differential Half

2шт.

10

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

2шт.

11

87742960

PIN

Slot, 5 x 80 mm

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

Locking

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.
