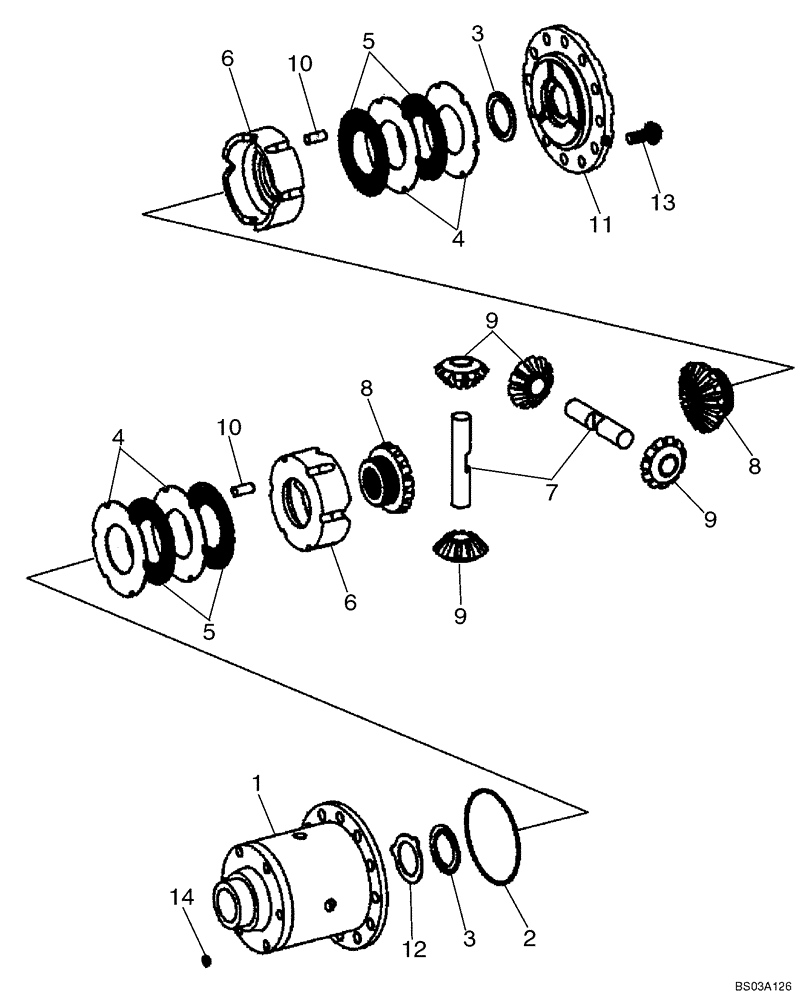

Запчасти Case 721E (06-47) - AXLE, REAR - DIFFERENTIAL - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

87361214

REAR AXLE

See Figures 06-44, 06-45, 06-46, 06-47, 06-48; Prior To P.I.N. N8F203816

1шт.

87361214R

REMAN-REAR AXLE

721E TIER 3 (8/06-)

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

8603825

DIFFERENTIAL ASSY

Limited Slip; Incl. 1 - 14; Also Includes Figure 06-48

1шт.

8603546

AXLE DIFFERENTIAL

Incl. 1 - 14

1шт.

1

8603545

HOUSING

1шт.

2

8603250

SNAP RING

1шт.

3

8603251

THRUST WASHER

2шт.

4

8603277

CLUTCH PLATE

2.2 mm

1шт.

4

8603547

CLUTCH PLATE

CLUTCH DISK 2.1 mm; Outer

1шт.

4

8603278

CLUTCH PLATE,Steel

2.3 mm

1шт.

4

8603279

CLUTCH PLATE

2.4 mm

1шт.

4

8603280

CLUTCH PLATE

2.5 mm

1шт.

5

8603272

DISC

Inner Clutch

4шт.

6

8603252

SNAP RING

2шт.

7

8603253

SHAFT

2шт.

8

8603267

GEAR

2шт.

9

8603254

PINION

4шт.

10

8603255

PIN

12шт.

11

8603548

COVER

1шт.

12

8603282

THRUST WASHER

1шт.

13

8603268

BOLT,Lock

12шт.

14

8603271

SEAL

6шт.
