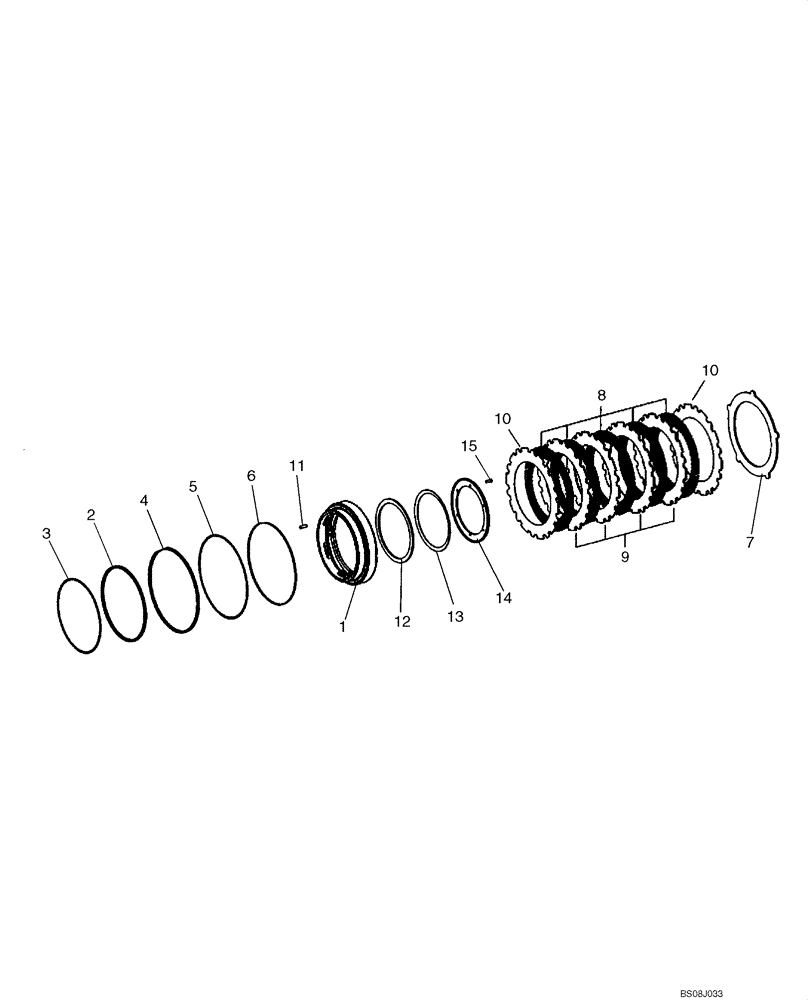

Запчасти Case 721E (06-46A) - AXLE, REAR - HUB, DISC BRAKES - P.I.N. N8F203848 AND AFTER (06) - POWER TRAIN

87550689

REAR AXLE

See Figures 06-44A, 06-45A, 06-46A, 06-47A, 06-48A; P.I.N. N8F203816 And After

1шт.

87550689R

REMAN-REAR AXLE

721E WHEEL LOADER TIER 3 (NA), DISC BRAKES P.I.N. N8F203848 AND AFTER, P.I.N. N8F203816 AND AFTER (8/06-)

1шт.

87550689C

CORE-REAR AXLE

Return Number

1шт.

87496680

END ASSY, Incl. Refs. 1 - 15, Also Incl. Parts on Fig. 06-45A

2шт.

1

87496681

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

87743217

SHIM

1шт.

8

87341835

BRAKE DISC

NSS, Please Order P/N 87365253 Kit, Incl 8 - 10, Parts For One Complete Axle (Two Wheel Ends)

5шт.

9

8603582

BRAKE PLATE

NSS, Please Order P/N 87365253 Kit, Incl 8 - 10, Parts For One Complete Axle (Two Wheel Ends

4шт.

10

87441328

PLATE,2mm Thk

NSS, Please Order P/N 87365253 Kit, Incl 8 - 10, Parts For One Complete Axle (Two Wheel Ends

2шт.

11

87743218

PIN

6шт.

12

87743219

WASHER

1шт.

13

87743220

WASHER

1шт.

14

87498342

COVER

1шт.

15

87743747

SCREW,Hex

6шт.
