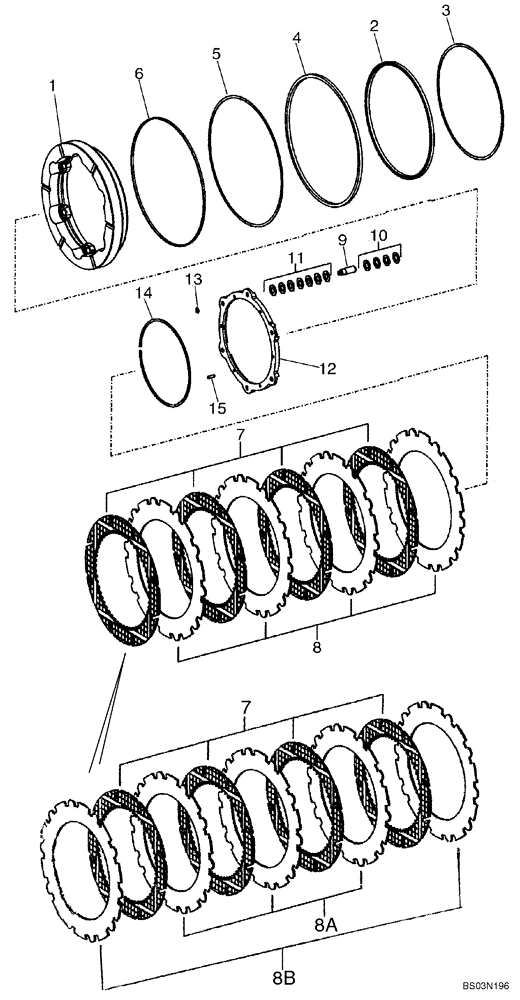

Запчасти Case 721E (06-46) - AXLE, REAR - HUB, DISC BRAKES - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

87361214

REAR AXLE

See Figures 06-44, 06-45, 06-46, 06-47, 06-48; Prior To P.I.N. N8F203816

1шт.

87361214R

REMAN-REAR AXLE

721E TIER 3 (8/06-)

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

87361216

FINAL DRIVE

FINAL REDUCTION GEARBOX Incl. Refs. 1 - 18, Also Incl. Parts on Fig. 06-45

1шт.

87363354

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE, NA Only

1шт.

87363352

CORE-WHEEL END ASSY

Return Number, AXLE, NA Only

1шт.

1

8603165

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

8603581

BRAKE DISC

NSS, Order Brake Pack Replacement Kit 87365252 for Stage 2

4шт.

8

8603582

BRAKE PLATE

NSS, Order Brake Pack Replacement Kit 87365252 For Stage 2

4шт.

87365252

REPAIR KIT

Brake Pack Replacement, Incl. Parts For One Complete Axle (Two Wheel Ends); Incl. (2X) Refs. 9 - 11

1шт.

9

8603163

PIN

1шт.

10

8603583

SEAL

24шт.

11

8603584

BELLEVILLE WASHER

42шт.

12

8603162

SHIM

1шт.

13

8603788

SNAP RING

6шт.

14

8603585

SNAP RING

1шт.

15

8603796

ROLL PIN,6mm OD x 20mm L

6шт.
