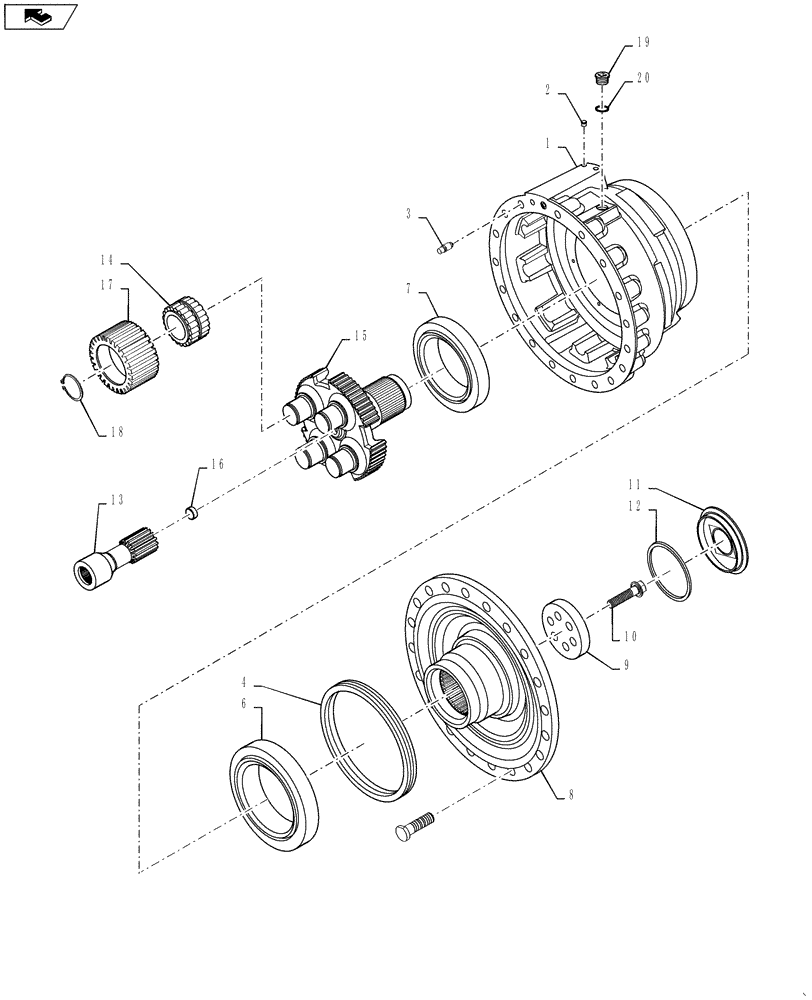

Запчасти Case 721E (06-45A) - AXLE, REAR - HUB, PLANETARY - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87550689

REAR AXLE

See Figures 06-44A, 06-45A, 06-46A, 06-47A, 06-48A; P.I.N. N8F203816 And After

1шт.

87550689R

REMAN-REAR AXLE

721E WHEEL LOADER TIER 3 (NA), PLANETARY P.I.N. N8F203816 AND AFTER (8/06-)

1шт.

87550689C

CORE-REAR AXLE

Return Number

1шт.

1

87743207

HOUSING

Brake

1шт.

2

8603673

PLUG

2шт.

3

76088742

VALVE

Vent

1шт.

4

84150634

SEAL

SEALRING

1шт.

6

8603563

TAPERED BEARING

1шт.

7

87743209

TAPERED BEARING

1шт.

8

87743210

SHAFT

Output

1шт.

9

87743211

COVER

1шт.

10

87743212

LOCK BOLT

Locking

4шт.

11

87743213

COVER

1шт.

12

8603527

O-RING

1шт.

13

87743214

SHAFT

Sun Gear

1шт.

14

84219769

BEARING, ROLLER, CYL

Planet

4шт.

15

84162393

CARRIER,Planetary Gear

Planet; Replaces 87485969

1шт.

16

8603571

PLUG

1шт.

17

87358699

GEAR

4шт.

18

87358698

SNAP RING

3шт.

19

8603575

PLUG

M24 x 1.5, Incl 19A

1шт.

20

8603208

O-RING,2mm Thk x 21mm ID

1шт.
