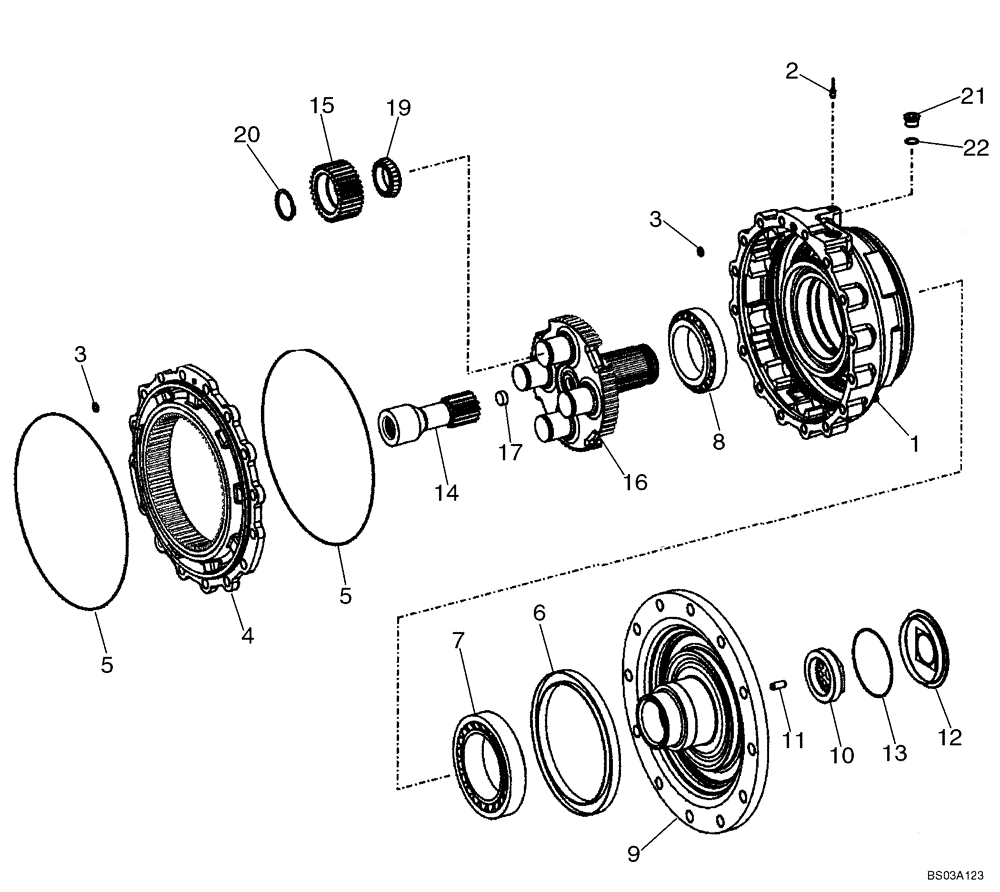

Запчасти Case 721E (06-45) - AXLE, REAR - HUB, PLANETARY - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

87361214

REAR AXLE

See Figures 06-44, 06-45, 06-46, 06-47, 06-48; Prior To P.I.N. N8F203816

1шт.

87361214R

REMAN-REAR AXLE

721E TIER 3 (8/06-)

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

87361216

FINAL DRIVE

FINAL REDUCTION GEARBOX Incl. Refs. 1 - 23, Also Incl. Parts on Fig. 06-46

1шт.

87363354

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE, NA Only

1шт.

87363352

CORE-WHEEL END ASSY

Return Number, AXLE, NA Only

1шт.

1

87437916

HOUSING

1шт.

2

8603558

PLUG

Incl. 3

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603560

RING GEAR,Planetary Ring

1шт.

5

8603561

O-RING

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603563

TAPERED BEARING

1шт.

8

8603564

TAPERED BEARING

1шт.

9

8603675

FLANGE

Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603568

GEAR

Shaft

1шт.

15

87358699

GEAR

PLANET

4шт.

16

87358702

PLANET CARRIER

PLANET

1шт.

17

8603571

PLUG

Stop

1шт.

19

84219769

BEARING, ROLLER, CYL

4шт.

20

87358698

SNAP RING

4шт.

21

8603575

PLUG

Incl. 22

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.

23

8603556

SHIM

If Used; Not Illustrated

1шт.
