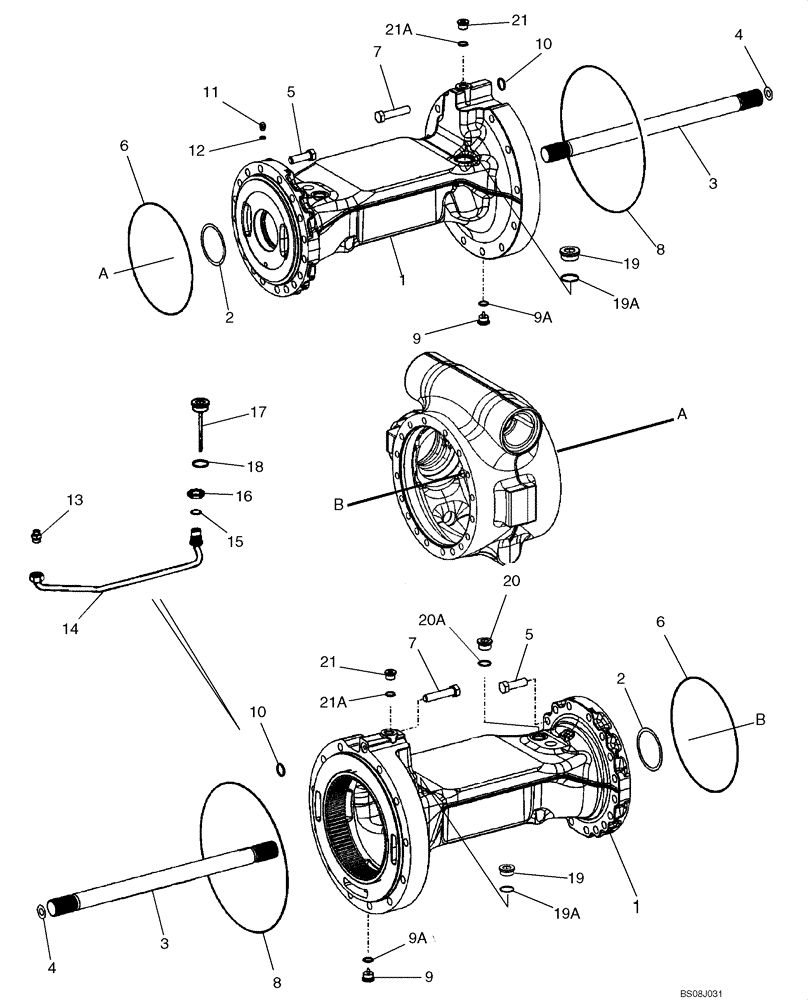

Запчасти Case 721E (06-44A) - AXLE, REAR - HOUSING - P.I.N. N8F203817 AND AFTER (06) - POWER TRAIN

87550689

REAR AXLE

See Figures 06-44A, 06-45A, 06-46A, 06-47A, 06-48A; P.I.N. N8F203816 And After

1шт.

87550689R

REMAN-REAR AXLE

721E WHEEL LOADER TIER 3 (NA), HOUSING P.I.N. N8F203817 AND AFTER, P.I.N. N8F203816 AND AFTER (8/06-)

1шт.

87550689C

CORE-REAR AXLE

Return Number

1шт.

1

87496678

CASE

Front Axle

2шт.

2

87742964

SHIM,0.8mm Thk

0.8 mm

1шт.

2

87742965

SHIM,0.9mm Thk

0.9 mm

1шт.

2

87743201

SHIM,1mm Thk

1.0 mm

1шт.

2

87743202

SHIM,1.1mm Thk

1.1 mm

1шт.

2

87743203

SHIM,1.2mm Thk

1.2 mm

1шт.

3

87496679

SHAFT

2шт.

4

8603730

SHIM,0.2mm Thk

1шт.

4

8603669

SHIM,0.4mm Thk

1шт.

4

8603731

SHIM,1mm Thk

1шт.

4

8603732

SHIM,1.5mm Thk

1шт.

5

71448875

SCREW

M18 x 60

36шт.

6

87743205

O-RING

270 x 2.5 mm

2шт.

7

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

24шт.

8

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

360 x 2.5 mm

2шт.

9

8603550

PLUG

M24 x 1.5

2шт.

9a

8603208

O-RING,2mm Thk x 21mm ID

1шт.

10

87746031

O-RING

M20 x 3

2шт.

11

100113A1

PLUG

M10 x 1

2шт.

12

A52231

SEALING RING

2шт.

13

87743748

SLEEVE

Screw-In

2шт.

14

87498343

TUBE

Internal Brake

2шт.

15

79107839

O-RING

2шт.

16

8603619

TUBE NUT

2шт.

17

87743750

DIPSTICK

Rear Axle Oil

1шт.

18

87454993

O-RING

1шт.

19

A48791

PLUG

M42 x 1.5, Also Order 19A

1шт.

19a

87454993

O-RING

1шт.

20

A52148

PLUG

M30 x 1.5, Also Order 20A

2шт.

20a

79096828

O-RING

1шт.

21

934025R1

PLUG,Hex Soc, M22 x 1.5

Also Order 21A

2шт.

21a

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.
