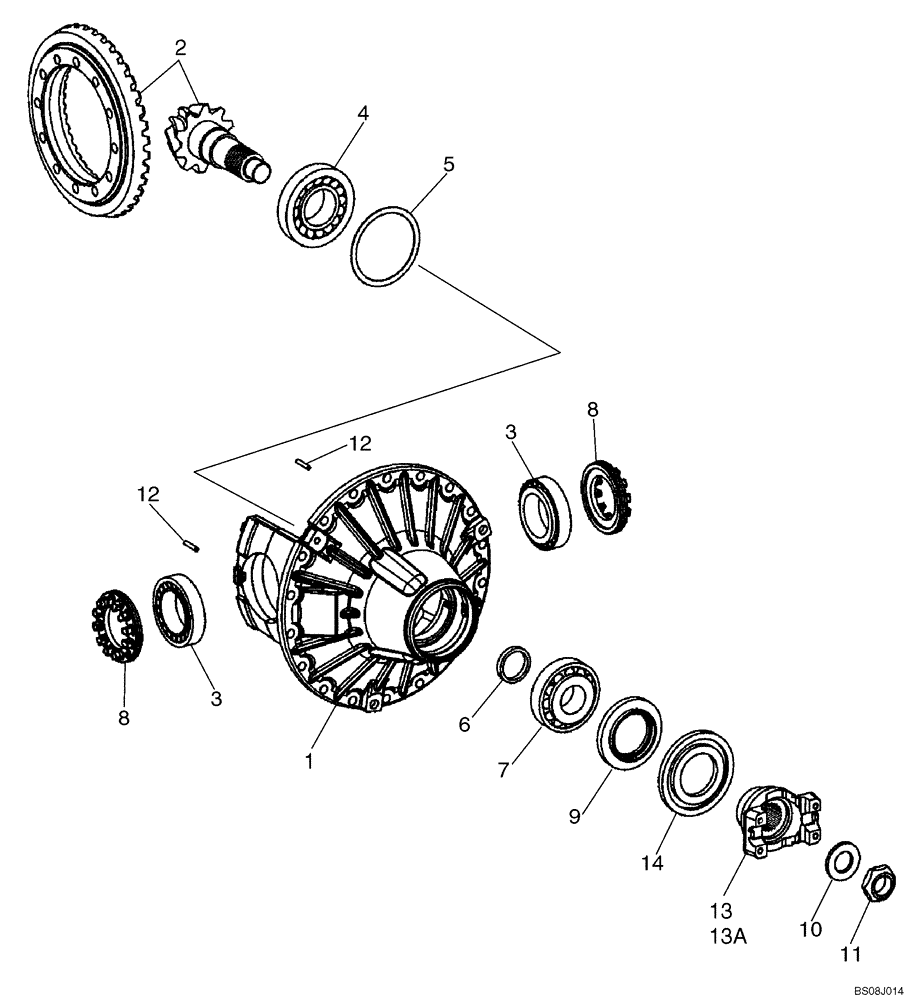

Запчасти Case 721E (06-43) - AXLE, FRONT - DIFFERENTIAL CARRIER (06) - POWER TRAIN

87361212

FRONT AXLE

See Figures 06-39, 06-40, 06-41, 06-42, 06-43; Prior To P.I.N. N8F203816

1шт.

87361212R

REMAN-AXLE DIFFERENT

721E WHEEL LOADER TIER 3 (NA), Prior To P.I.N. N8F203816 (8/06-)

1шт.

87361212C

CORE-AXLE, MFD

Return Number

1шт.

87470216

FRONT AXLE

AXLE, FRONT, See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F203816 - P.I.N. N8F204594

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F203816 - P.I.N. N8F204594 (8/06-), Reman for New P/N 87470216

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

87561567

FRONT AXLE

See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F204595 And After

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F204595 AND AFTER (8/06-)

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

8603591

CARRIER

Assy; Incl. 1 - 13, 14; Also Includes Parts On Figure 06-42; Prior To P.I.N. N8F204595: Used On Front Axles 87361212, 87470216

1шт.

8605599

REMAN-AXLE DIF w/LTD

REMAN-AXLE DIFF, w/LTD SLIP REMANUFACTURED CARRIER/AXLE - NA Only

1шт.

8605600

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, CARRIER/AXLE - NA Only

1шт.

84123986

CARRIER

Assy; Incl. 1 - 12, 13A, 14; Also Includes Parts On Figure 06-42; P.I.N. N8F204595 And After: Used On Front Axle 87561567

1шт.

1

8605615

HOUSING

Pinion and Differential

1шт.

2

8605618

GEAR SET

Bevel

1шт.

3

8603226

ROLLER BEARING

Left Hand

2шт.

4

87757160

TAPERED BEARING

Front

1шт.

5

8603228

WASHER,0.7mm Thk

1шт.

5

8603229

SHIM,0.8mm Thk

1шт.

5

8603230

SHIM,0.9mm Thk

1шт.

5

8603231

SHIM,1mm Thk

1шт.

5

8603232

SHIM,1.1mm Thk

1шт.

5

8603233

SHIM,1.2mm Thk

1шт.

5

8603234

SHIM,1.3mm Thk

1шт.

5

8603235

SHIM,1.4mm Thk

1шт.

5

8603236

SHIM,1.5mm Thk

1шт.

5

8603237

SHIM,0.2mm Thk

1шт.

5

8603238

SHIM,0.1mm Thk

1шт.

6

8603239

SPACER,8.80 mm

8.8 mm Thk

1шт.

6

8603789

SPACER,8.70 mm

8.7 mm Thk

1шт.

6

8603794

SPACER,8.60mm

8.6 mm Thk

1шт.

6

8603793

SPACER,8.50 mm

8.5 mm Thk

1шт.

6

8603792

SPACER,8.40 mm

8.4 mm Thk

1шт.

6

8603791

SPACER,8.30 mm

8.3 mm Thk

1шт.

6

8603240

SPACER,8.90 mm

8.9 mm Thk

1шт.

6

8603241

SPACER,9.10 mm

9.1 mm Thk

1шт.

6

8603242

WASHER,9.20 mm

9.2 mm Thk

1шт.

6

8603243

SPACER,9.30 mm

9.3 mm Thk

1шт.

6

8603244

SPACER,9.40 mm

9.4 mm Thk

1шт.

7

8603245

ROLLER BEARING,50.8mm ID x 82mm OD x 21.98mm W

Rear

1шт.

8

8603246

NUT

2шт.

9

8603247

SEAL,75mm ID x 125mm OD

1шт.

10

8603248

WASHER,36mm ID x 64.6mm OD x 5.8mm Thk

1шт.

11

8605616

NUT

Hex, M36 x 1.5

1шт.

12

8603795

ROLL PIN,6mm OD x 36mm L, Slotted

8 x 45 mm

1шт.

13

8603266

FLANGE

Input; Used On Front Axle 87361212, 87470216

1шт.

13a

119321A1

FLANGE

Input; Used On Front Axle 87561567

1шт.

14

8604975

SEAL PROTECTION

Pinion Dust

1шт.
