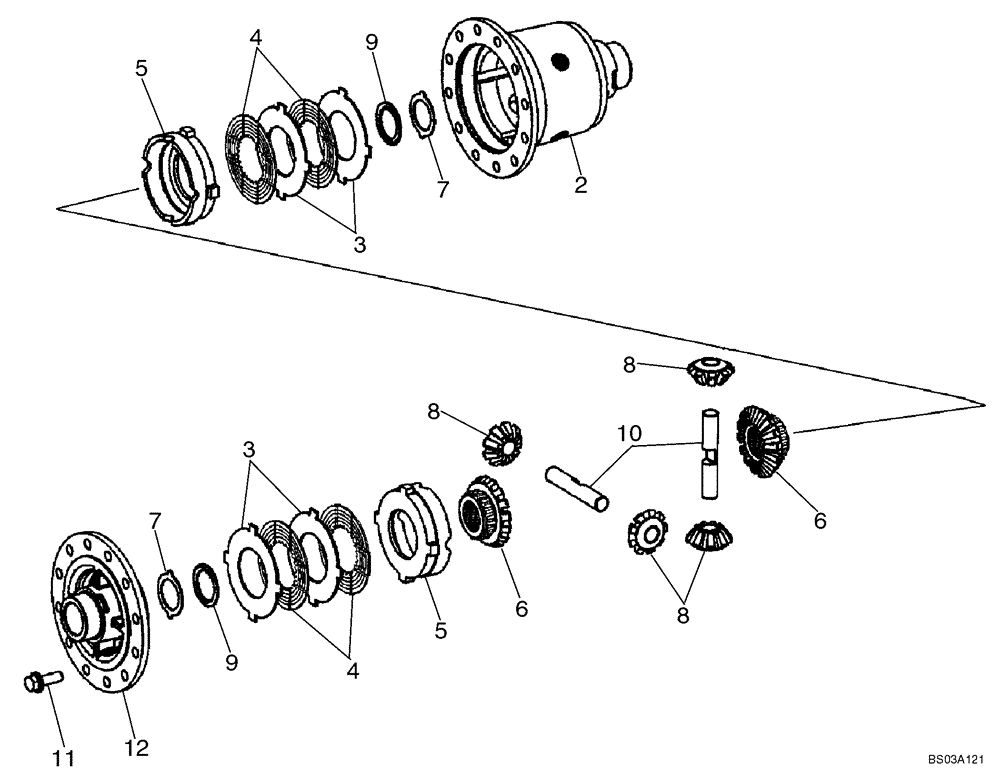

Запчасти Case 721E (06-42) - AXLE, FRONT - DIFFERENTIAL (06) - POWER TRAIN

87361212

FRONT AXLE

See Figures 06-39, 06-40, 06-41, 06-42, 06-43; Prior To P.I.N. N8F203816

1шт.

87361212R

REMAN-AXLE DIFFERENT

721E WHEEL LOADER TIER 3 (NA), Prior To P.I.N. N8F203816 (8/06-)

1шт.

87361212C

CORE-AXLE, MFD

Return Number

1шт.

87470216

FRONT AXLE

AXLE, FRONT, See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F203816 - P.I.N. N8F204594

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F203816 - P.I.N. N8F204594 (8/06-), Reman for New P/N 87470216

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

87561567

FRONT AXLE

See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F204595 And After

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F204595 AND AFTER (8/06-)

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

8603591

CARRIER

Assy; Incl. Refs. 2 - 12; Also Includes Parts On Figure 06-43; Prior To P.I.N. N8F204595: Used On Front Axles 87361212, 87470216

1шт.

2

8605619

HOUSING

Limited Slip Differential

1шт.

8605599

REMAN-AXLE DIF w/LTD

REMAN-AXLE DIFF, w/LTD SLIP REMANUFACTURED CARRIER/AXLE - NA Only

1шт.

8605600

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, CARRIER/AXLE - NA Only

1шт.

84123986

CARRIER

Assy; Incl. Refs. 2 - 12; Also Includes Parts On Figure 06-43; P.I.N. N8F204595 And After: Used On Front Axle 87561567

1шт.

8603621

DIFFERENTIAL ASSY

Limited Slip; Incl. Refs. 2 - 12

1шт.

3

87521431

PLATE

2.9 mm; Outer; Replaces 8603592

1шт.

4

8603203

PLATE

Inner

4шт.

3

87521432

PLATE

3.0 mm; Outer; Replaces 8603593

1шт.

5

8603601

DIVIDER

2шт.

3

87521433

CLUTCH PLATE

3.1 mm; Outer; Replaces 8603594

1шт.

7

8603597

SHIM

2шт.

8

87521434

DIFFERENTIAL GEAR

Pinion, Replaces 8603204

4шт.

6

87521435

DIFFERENTIAL GEAR

Side; Replaces 8603602

2шт.

9

8603596

WASHER

2шт.

10

8603600

SHAFT

2шт.

11

8603273

BOLT

12шт.

12

8603599

COVER

1шт.
