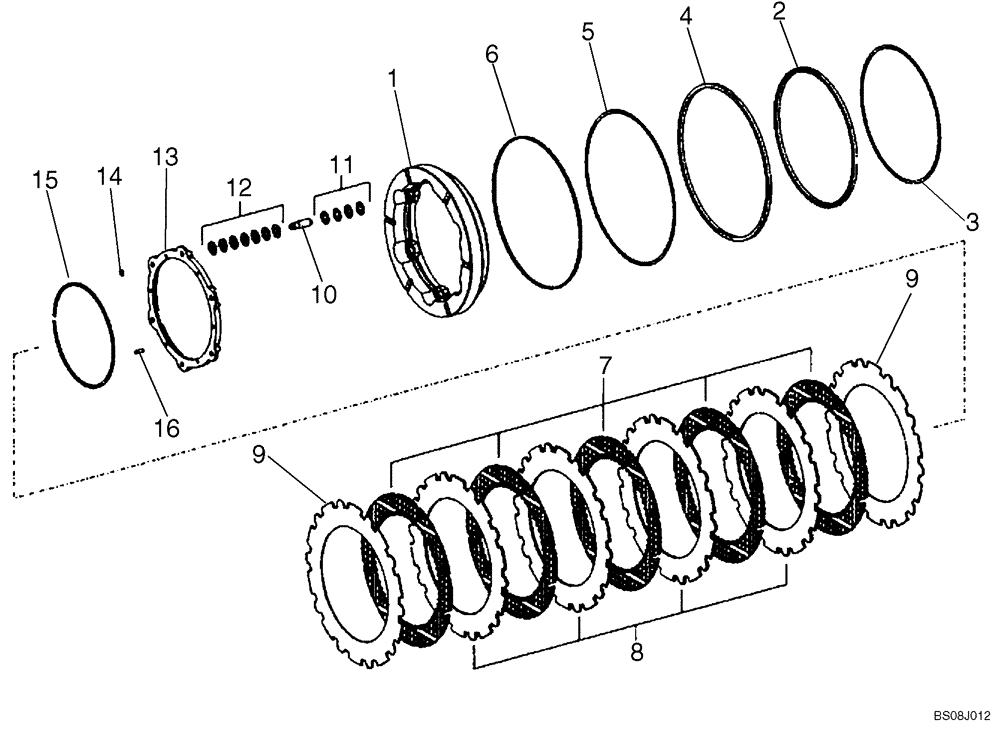

Запчасти Case 721E (06-41A) - AXLE, FRONT - HUB, DISC BRAKES - P.I.N. N8F204595 AND AFTER (06) - POWER TRAIN

87470216

FRONT AXLE

AXLE, FRONT, See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F203816 - P.I.N. N8F204594

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F203816 - P.I.N. N8F204594, HUB, DISC BRAKERS - P.I.N. N8F204595 AND AFTER (8/06-), Reman for New P/N 87470216

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

87561567

FRONT AXLE

See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F204595 And After

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F204595 AND AFTER (8/06-)

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

87365252

REPAIR KIT

Brake Pack Replacement, Incl. Refs. 7-9

1шт.

87496674

END

Incl. Refs. 1 - 16, Also Incl. Parts on Figure 06-40A

1шт.

1

8603165

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

87341835

BRAKE DISC

NSS, Please Order P/N 87365253 Kit, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

10шт.

8

8603582

BRAKE PLATE

NLS, Order Brake Pack Replacement Kit 87365253, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

8шт.

9

87441328

PLATE,2mm Thk

Outer Disc, NSS, Please Order P/N 87365253 Kit, Incl 7 - 9, Parts For One Complete Axle (Two Wheel Ends)

4шт.

10

8603164

PIN

6шт.

11

8603583

SEAL

24шт.

12

8603584

BELLEVILLE WASHER

42шт.

13

8603162

SHIM

1шт.

14

87408035

SNAP RING

6шт.

15

8603585

SNAP RING

1шт.

16

8603796

ROLL PIN,6mm OD x 20mm L

6шт.
