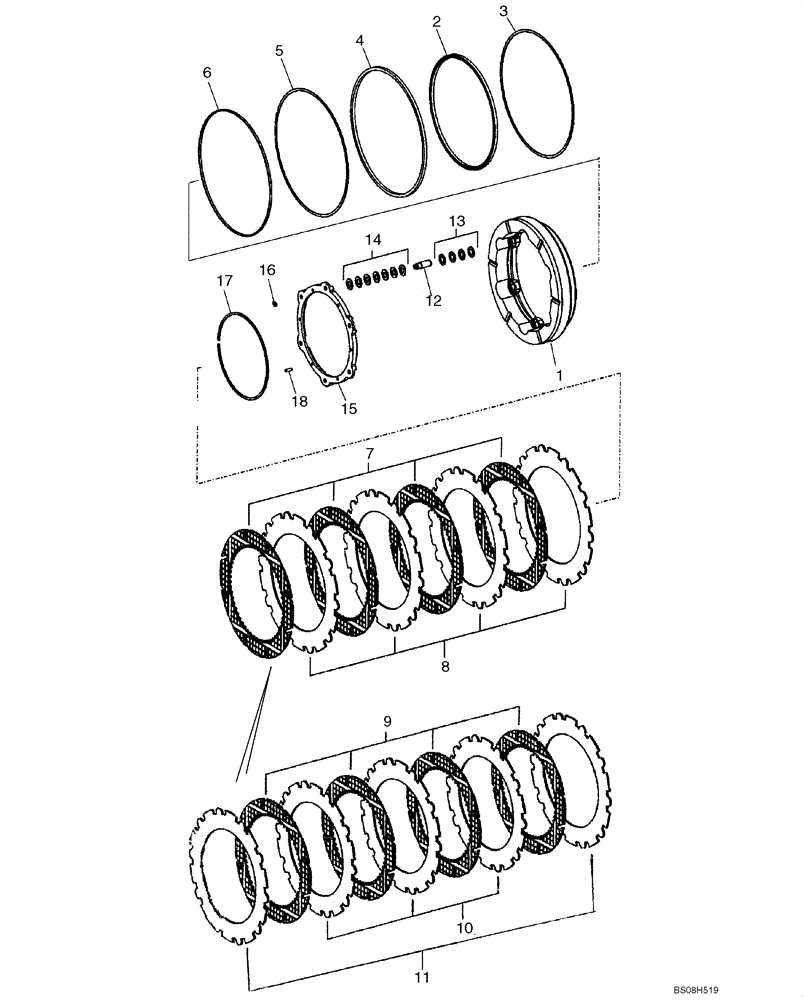

Запчасти Case 721E (06-41) - AXLE, FRONT - HUB, DISC BRAKES - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

87361212

FRONT AXLE

See Figures 06-39, 06-40, 06-41, 06-42, 06-43; Prior To P.I.N. N8F203816

1шт.

87361212R

REMAN-AXLE DIFFERENT

721E WHEEL LOADER TIER 3 (NA), Prior To P.I.N. N8F203816 (8/06-)

1шт.

87361212C

CORE-AXLE, MFD

Return Number

1шт.

87361215

FINAL DRIVE

FINAL REDUCTION GEARBOX Incl. Refs. 1 - 18, Also Incl. Parts on Figure 06-23

1шт.

87361215R

REMAN-WHEEL END ASSY

REMAN FINAL REDUCTION GEARBOX Incl. Refs. 1 - 18, Also Incl. Parts on Figure 06-23

1шт.

87361215C

CORE-WHEEL END ASSY

Return Number

1шт.

87363356

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE - NA Only

1шт.

87363350

CORE-WHEEL END ASSY

Return Number, AXLE - NA Only

1шт.

1

8603166

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

8603581

BRAKE DISC

NLS, Please Order P/N 87365252 Kit, Incl 9 - 11, Parts For One Complete Axle (Two Wheel Ends)

4шт.

8

8603582

BRAKE PLATE

NLS, Please Order P/N 87365252 Kit, Incl 9 - 11, Parts For One Complete Axle (Two Wheel Ends)

4шт.

87365252

REPAIR KIT

Brake Pack Replacement, Incl. Parts For One Complete Axle (Two Wheel Ends); Incl (2X) Refs. 9 - 11

1шт.

9

87341835

BRAKE DISC

NSS, Please Order P/N 87365252 Kit, Incl 9 - 11, Parts For One Complete Axle (Two Wheel Ends)

4шт.

10

8603582

BRAKE PLATE

NSS, Please Order P/N 87365252 Kit, Incl 9 - 11, Parts For One Complete Axle (Two Wheel Ends)

3шт.

11

87441328

PLATE,2mm Thk

NSS, Please Order P/N 87365252 Kit, Incl 9 - 11, Parts For One Complete Axle (Two Wheel Ends)

2шт.

12

8603163

PIN

6шт.

13

8603583

SEAL

24шт.

14

8603584

BELLEVILLE WASHER

42шт.

15

8603162

SHIM

1шт.

16

8603788

SNAP RING

6шт.

17

8603585

SNAP RING

1шт.

18

8603796

ROLL PIN,6mm OD x 20mm L

6шт.
