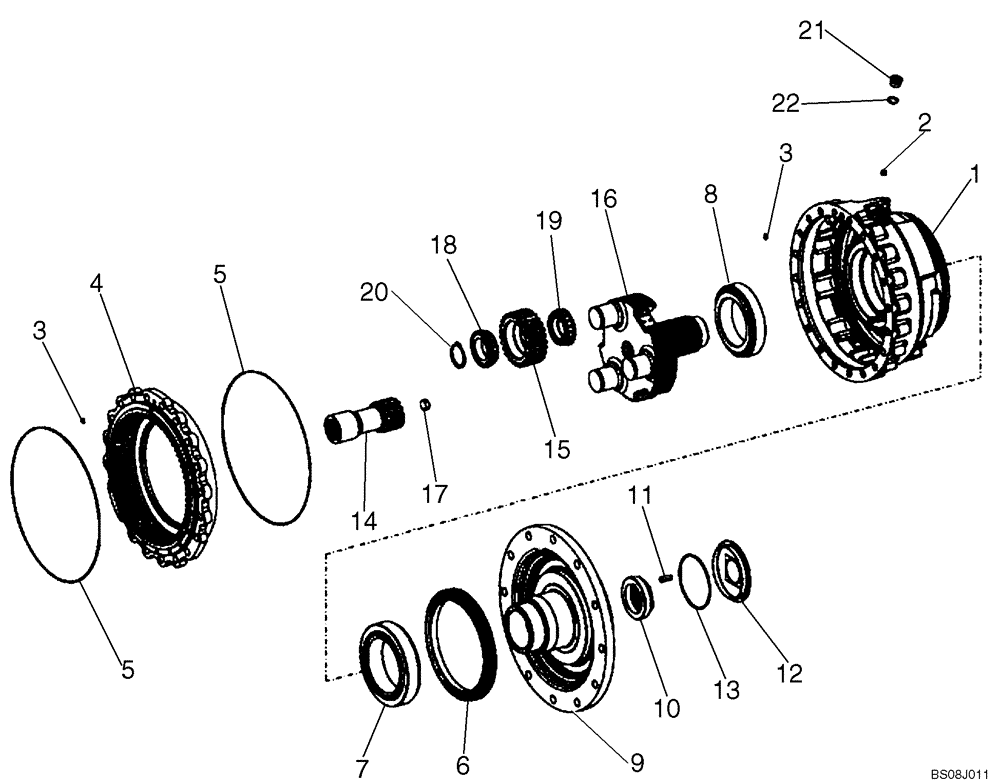

Запчасти Case 721E (06-40A) - AXLE, FRONT - HUB, PLANETARY - P.I.N. N8F204595 AND AFTER (06) - POWER TRAIN

87470216

FRONT AXLE

AXLE, FRONT, See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F203816 - P.I.N. N8F204594

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F203816 - P.I.N. N8F204594, HUB, PLANETARY - P.I.N. N8F204595 AND AFTER (8/06-), Reman for New P/N 87470216

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

87561567

FRONT AXLE

See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F204595 And After

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F204595 AND AFTER (8/06-)

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

87496674

END

Incl. Refs. 1 - 22, Also Incl. Parts on Figure 06-41A

2шт.

1

84149185

HOUSING

Replaces 87757157

1шт.

2

8603673

PLUG

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603610

GEAR

Ring

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

2шт.

6

84150634

SEAL

SEALRING SEAL

1шт.

7

8603611

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

8

8603612

ROLLER BEARING

1шт.

9

87432166

FLANGE

Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603614

GEAR

Shaft, Sun

1шт.

15

8603615

GEAR

Planetary

3шт.

16

87437909

PLANET CARRIER

Planetary

1шт.

17

8603571

PLUG

1шт.

18

8603617

ROLLER BEARING

Inner

3шт.

19

8603618

ROLLER BEARING

Inner

3шт.

20

87496675

RING

Retainer

3шт.

21

8603575

PLUG

Incl. Ref. 22

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.
