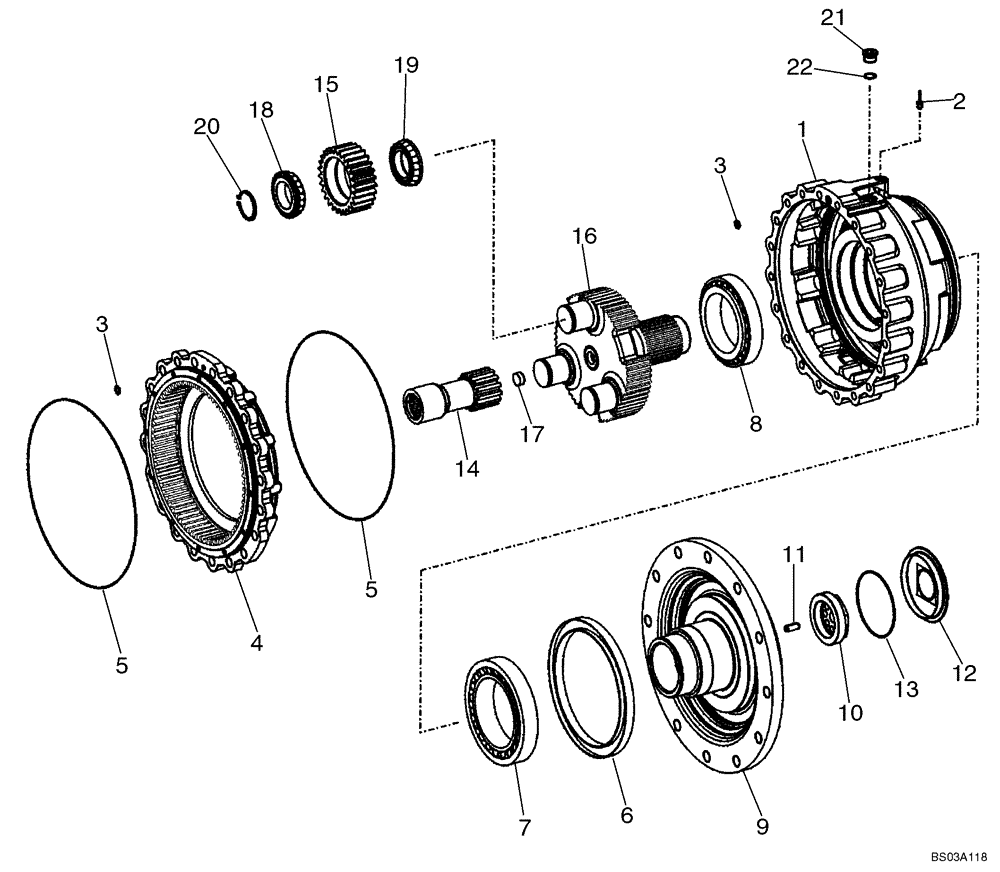

Запчасти Case 721E (06-40) - AXLE, FRONT - HUB, PLANETARY - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

87361212

FRONT AXLE

See Figures 06-39, 06-40, 06-41, 06-42, 06-43; Prior To P.I.N. N8F203816

1шт.

87361212R

REMAN-AXLE DIFFERENT

721E WHEEL LOADER TIER 3 (NA), Prior To P.I.N. N8F203816 (8/06-)

1шт.

87361212C

CORE-AXLE, MFD

Return Number

1шт.

87361215

FINAL DRIVE

FINAL REDUCTION GEARBOX Incl. Refs. 1 - 23, Also Incl. Parts on Figure 06-41

2шт.

87361215R

REMAN-WHEEL END ASSY

REMAN FINAL REDUCTION GEARBOX Incl. Refs. 1 - 23, Also Incl. Parts on Figure 06-41

2шт.

87361215C

CORE-WHEEL END ASSY

Return Number

1шт.

87363356

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE - NA Only

1шт.

87363350

CORE-WHEEL END ASSY

Return Number, AXLE - NA Only

1шт.

1

87437915

HOUSING

1шт.

2

8603558

PLUG

Incl. 3

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603610

GEAR

1шт.

5

8603561

O-RING

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603611

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

8

8603612

ROLLER BEARING

1шт.

9

87432166

FLANGE

Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603614

GEAR

Shaft

1шт.

15

8603615

GEAR

Planetary

3шт.

16

87437909

PLANET CARRIER

Planetary

1шт.

17

8603571

PLUG

1шт.

18

8603617

ROLLER BEARING

Inner

3шт.

19

8603618

ROLLER BEARING

Inner

3шт.

20

8603790

RETAINER

3шт.

21

8603575

PLUG

Incl. 22

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.

23

8603608

SHIM KIT

Not Illustrated

1шт.
