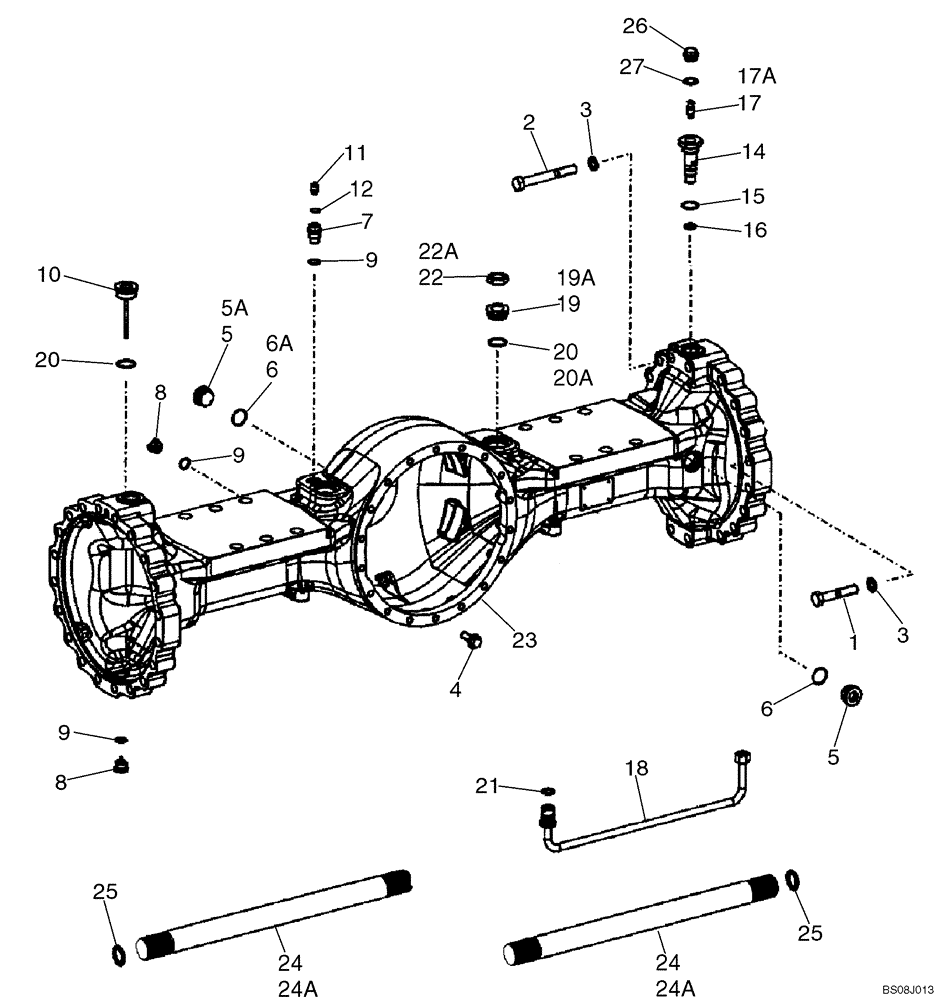

Запчасти Case 721E (06-39) - AXLE, FRONT - HOUSING (06) - POWER TRAIN

87361212

FRONT AXLE

See Figures 06-39, 06-40, 06-41, 06-42, 06-43; Prior To P.I.N. N8F203816

1шт.

87361212R

REMAN-AXLE DIFFERENT

721E WHEEL LOADER TIER 3 (NA), Prior To P.I.N. N8F203816 (8/06-)

1шт.

87361212C

CORE-AXLE, MFD

Return Number

1шт.

87470216

FRONT AXLE

AXLE, FRONT, See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F203816 - P.I.N. N8F204594

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F203816 - P.I.N. N8F204594 (8/06-), Reman for New P/N 87470216

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

87561567

FRONT AXLE

See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F204595 And After

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F204595 AND AFTER (8/06-)

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

1

8603603

BOLT

M18 x 95

32шт.

2

8603604

BOLT

M18 x 140

8шт.

3

8603202

WASHER

Differential

40шт.

4

8603206

BOLT

Differential To Axle Housing

18шт.

5

8603549

PLUG

Incl. 8603727, Ref. 6; Used On Axle 87361212

2шт.

5a

87521402

PLUG

Incl. 8605636, Ref. 6A; Used On Axles 87561567, 87470216

2шт.

6

8603727

O-RING,2.2mm Thk x 33mm ID

2шт.

6a

8605636

O-RING,2.2mm Thk x 33mm ID

2шт.

7

8603256

PLUG

Incl. Ref. 9

1шт.

8

8603550

PLUG

Incl. Ref. 9

2шт.

9

8603208

O-RING,2mm Thk x 21mm ID

3шт.

10

8603694

DIPSTICK

Oil

1шт.

11

100113A1

PLUG

Screw

1шт.

12

A52231

SEALING RING

1шт.

14

8603551

FITTING

Incl. Ref. 15

2шт.

15

8603727

O-RING,2.2mm Thk x 33mm ID

2шт.

16

8603552

GASKET

2шт.

17

76088742

VALVE

Breather

2шт.

18

87436738

BRAKE LINE

2шт.

19

8603553

UNION

Incl. Ref. 20; Used On Axle 87361212

2шт.

19a

8603696

FITTING

Brake Input, Incl. Ref. 20; Used On Axles 87561567, 87470216

2шт.

20

8603207

O-RING,2.5mm Thk x 38mm ID

Used On Axle 87361212

2шт.

20a

87454993

O-RING

Used On Axles 87561567, 87470216

2шт.

21

8603725

O-RING

2шт.

22

8603554

TUBE NUT

Internal Brake Lining; Used On Axle 87361212

2шт.

22a

8603619

TUBE NUT

Used On Axles 87561567, 87470216

2шт.

23

8603829

AXLE HOUSING

1шт.

24

8603607

HALF SHAFT

Used On Axle 87361212

2шт.

24a

384426A1

AXLE SHAFT

Used On Axles 87561567, 87470216

2шт.

25

8603608

SHIM KIT

If Used

2шт.

26

8603210

PLUG

Incl. Ref. 27

2шт.

27

8603799

RING

2шт.
