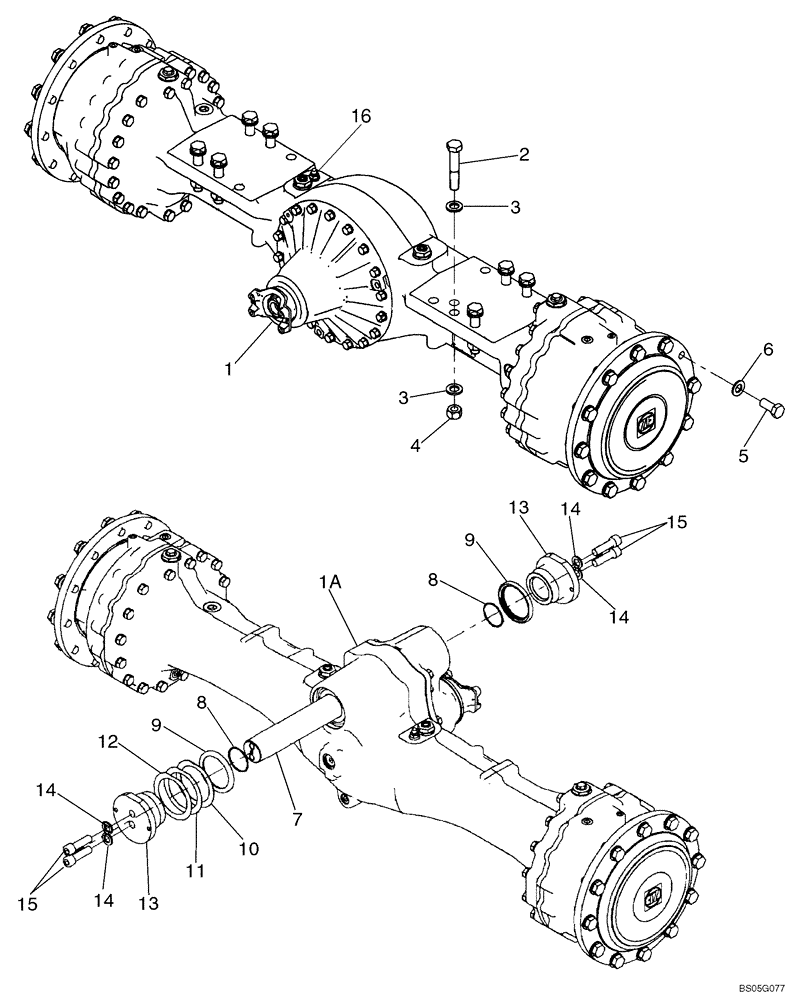

Запчасти Case 721E (06-38) - AXLE, FRONT AND REAR - MOUNTING (06) - POWER TRAIN

1

87361212

FRONT AXLE

See Figures 06-39, 06-40, 06-41, 06-42, 06-43; Prior To P.I.N. N8F203816

1шт.

1

87361212R

REMAN-AXLE DIFFERENT

721E WHEEL LOADER TIER 3 (NA), Prior To P.I.N. N8F203816 (8/06-)

1шт.

1

87361212C

CORE-AXLE, MFD

Return Number

1шт.

1

87470216

FRONT AXLE

AXLE, FRONT, See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F203816 - P.I.N. N8F204594

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F203816 - P.I.N. N8F204594 (8/06-), Reman for New P/N 87470216

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

1

87561567

FRONT AXLE

See Figures 06-39, 06-40A, 06-41A, 06-42, 06-43; P.I.N. N8F204595 And After

1шт.

87561567R

REMAN-FRT AXLE wo DL

721E TIER 3 P.I.N. N8F204595 AND AFTER (8/06-)

1шт.

87561567C

CORE-FRONT AXLE

Return Number

1шт.

1a

87361214

REAR AXLE

See Figures 06-44, 06-45, 06-46, 06-47, 06-48; Prior To P.I.N. N8F203816

1шт.

87361214R

REMAN-REAR AXLE

721E TIER 3 (8/06-)

1шт.

87361214C

CORE-REAR AXLE

Return Number

1шт.

1a

87550689

REAR AXLE

See Figures 06-44A, 06-45A, 06-46A, 06-47A, 06-48A; P.I.N. N8F203816 And After

1шт.

1a

87550689R

REMAN-REAR AXLE

721E WHEEL LOADER TIER 3 (NA), FRONT AND REAR MOUNTING P.I.N. N8F203816 AND AFTER (8/06-)

1шт.

1a

87550689C

CORE-REAR AXLE

Return Number

1шт.

2

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

8шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

16шт.

4

829-1424

NUT,M24, Cl 10

8шт.

5

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

48шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

48шт.

7

87695940

PIN,71.94mm OD x 463mm L

Pivot; Replaces Pivot Pin 87450044

1шт.

8

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

9

87715379

OIL SEAL,101.6mm ID x 127.1mm OD x 11.13mm Thk

Replaces 8500058

2шт.

10

8500055

SHIM,112.5mm ID x 147mm OD x 1.5mm Thk

1шт.

11

8500054

SHIM,112.5mm ID x 147mm OD x 1mm Thk

1шт.

12

8500053

SHIM,112.5mm ID x 147mm OD x 0.5mm Thk

1шт.

13

87731989

PIVOT

End Cap; Replaces 8500056

2шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

15

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

4шт.

16

8603201

BREATHER

Used On Both Front And Rear Axle; Breather For Rear Axle Not Illustrated

2шт.
