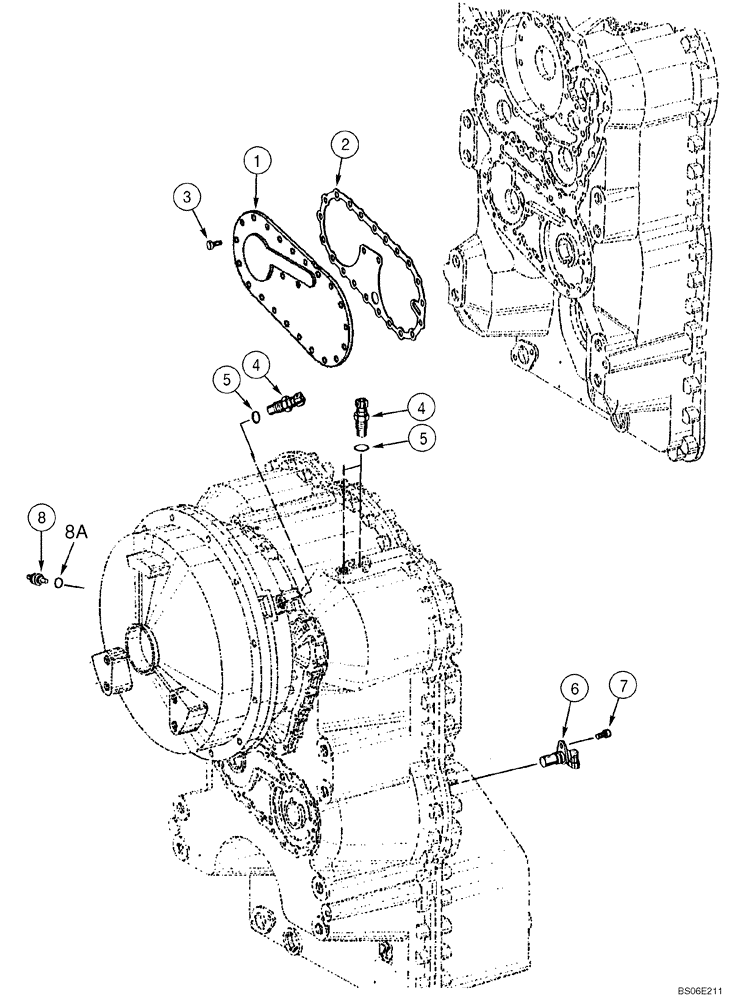

Запчасти Case 721E (06-36) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - SENSOR, SPEED AND PUMP COVER - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),SENSOR, SPEED AND PUMP COVER P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

1

8603393

COVER

Steering Pump

1шт.

2

8603395

GASKET

1шт.

3

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

23шт.

4

8603397

SENSOR

Inductive Coupling; Incl. Ref. 5

3шт.

5

87453989

O-RING

3шт.

6

8603398

SENSOR

Speed, Output; Incl. Ref. 6A

1шт.

6a

8603629

O-RING

Not Illustrated

1шт.

7

8603399

SCREW,M8 x 16mm

1шт.

8

87712669

SENSOR

Incl. 8A

1шт.

8a

8603402

O-RING

1шт.
