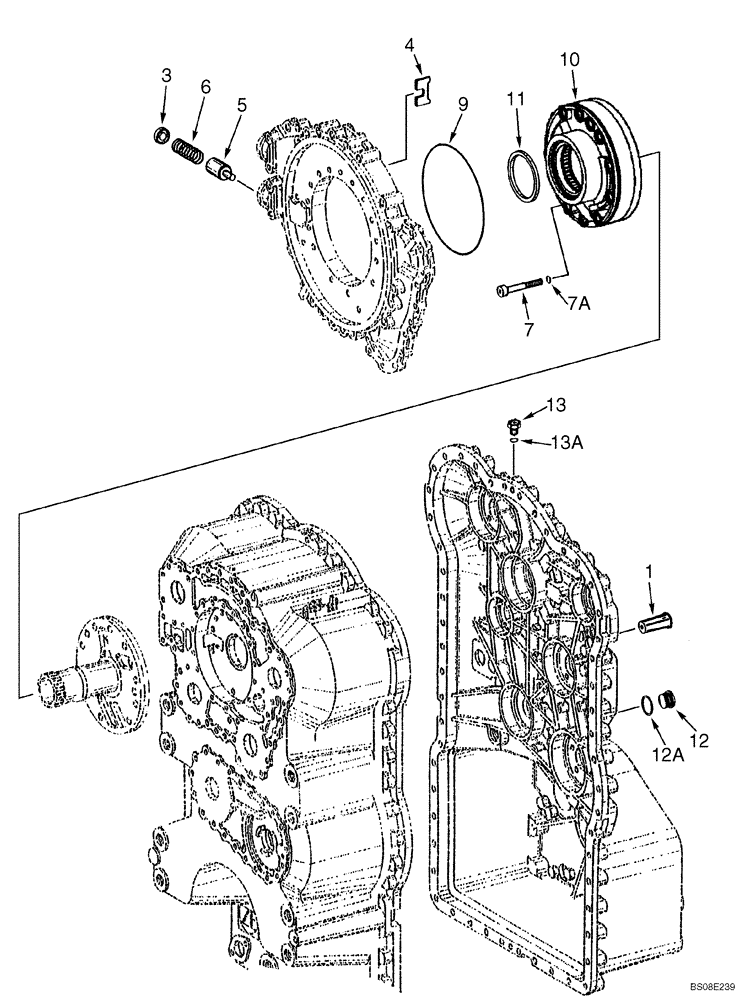

Запчасти Case 721E (06-35) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),VALVE, REGULATOR AND OIL PUMP P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

1

8603378

VALVE

1шт.

3

8603380

SPRING SEAT

1шт.

4

8603381

PLATE

1шт.

5

8603382

PISTON

1шт.

6

8603383

SPRING

1шт.

7

8603384

SCREW

Incl. Ref. 7A

10шт.

7a

8603385

O-RING

10шт.

9

87712668

O-RING,184.5" ID x 3" Width

1шт.

10

87446110

PUMP, HYDRAULIC

Oil Pressure; Incl. Ref. 11

1шт.

11

8603391

SEAL

1шт.

12

8603400

PLUG

Incl. Ref. 12A

1шт.

12a

8603401

O-RING,2mm Thk x 23mm ID

1шт.

13

8603357

PLUG

Incl. Ref. 13A

2шт.

13a

8603358

O-RING,2mm Thk x 13mm ID

2шт.
