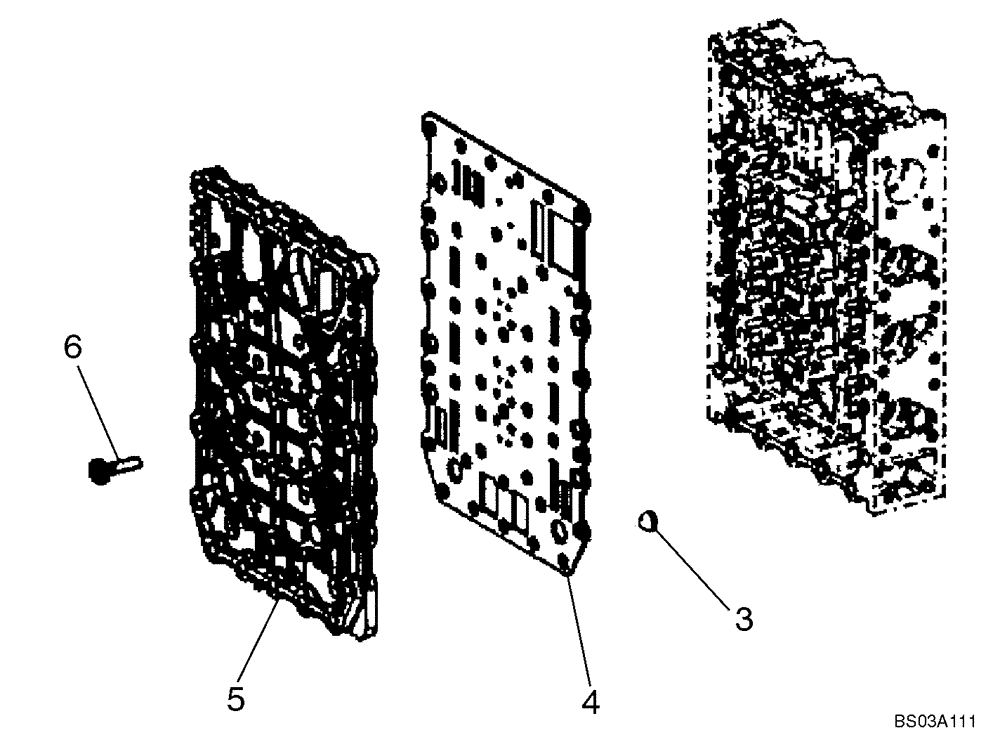

Запчасти Case 721E (06-34) - TRANSMISSION - VALVE, CONTROL - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - VALVE, CONTROL - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87712671

CONTROL VALVE

Incl. Refs. 3 - 6; Incl. Parts On Figure 06-33

1шт.

3

8603363

SCREEN

6шт.

4

8603181

PLATE

1шт.

5

8603628

PLATE

Distribution

1шт.

6

8603183

SCREW,M6 x 23mm, Cl 10.9

18шт.
