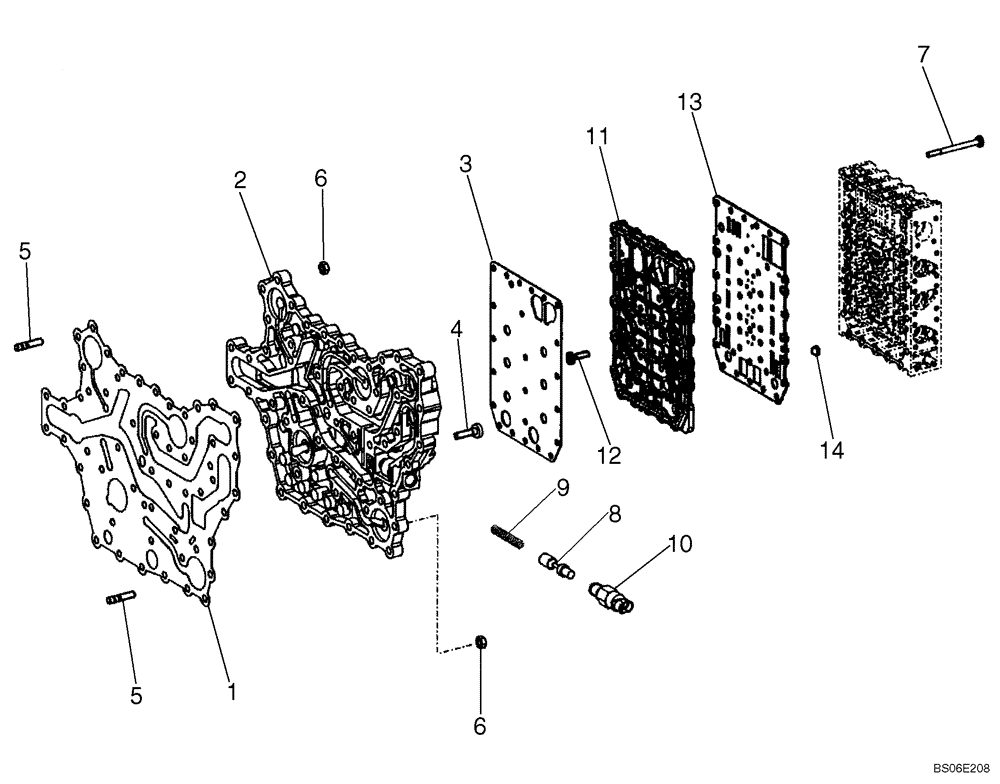

Запчасти Case 721E (06-32) - TRANSMISSION - VALVE PLATES - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - VALVE PLATES - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),VALVE PLATES P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

1

8603804

GASKET

1шт.

2

8603805

PLATE

1шт.

3

87712665

PLATE

1шт.

4

8603308

SCREW

M8 x 30

36шт.

5

8604714

STUD

M8 x 25

14шт.

6

8603315

NUT

M8

14шт.

7

8603182

SCREW,M6 x 76mm

M6 x 76

23шт.

8

8603533

PISTON

1шт.

9

8603534

SPRING

1шт.

10

8603537

SWITCH

1шт.

87712671

CONTROL VALVE

Transmission Control, Incl. Refs. 11 - 14, Also Incl. Parts On Figure 06-33

1шт.

11

8603628

PLATE

Duct

1шт.

12

8603183

SCREW,M6 x 23mm, Cl 10.9

M6 x 23

18шт.

13

87712667

PLATE

1шт.

14

8603363

SCREEN

6шт.
