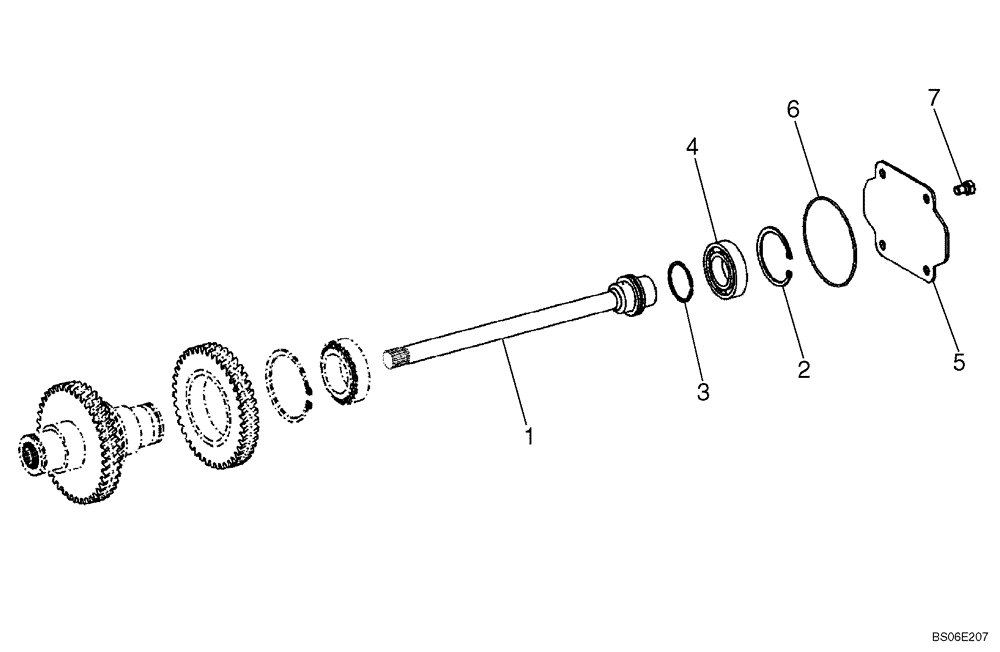

Запчасти Case 721E (06-31) - TRANSMISSION - POWER TAKE OFF - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - POWER TAKE OFF - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),POWER TAKE OFF P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

1

8603525

SHAFT

Pump Drive

1шт.

2

8603354

CIRCLIP

1шт.

3

8603302

PISTON RING

1шт.

4

8603353

BALL BEARING

1шт.

5

8603526

COVER

1шт.

6

8603527

O-RING

1шт.

7

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

4шт.
