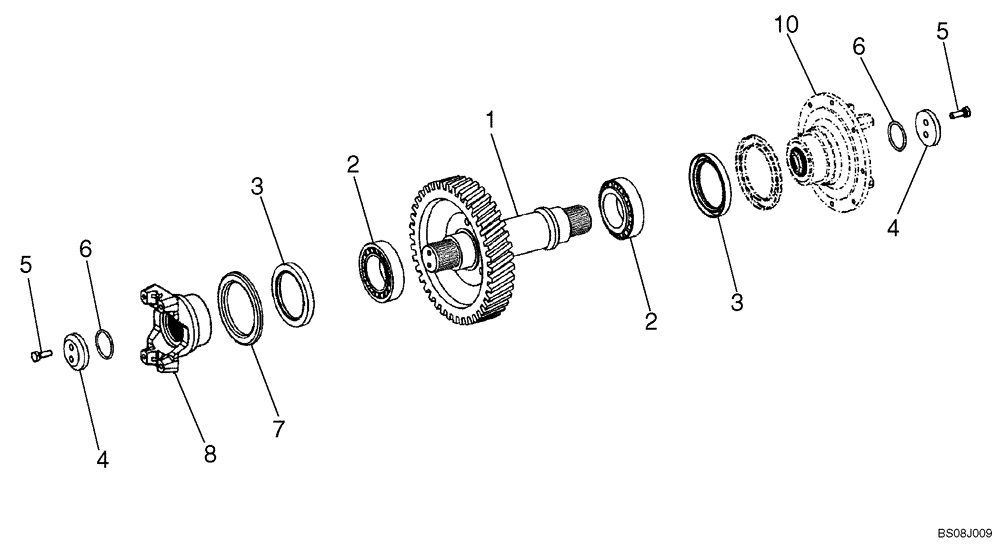

Запчасти Case 721E (06-30) - TRANSMISSION - SHAFT, OUTPUT - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - SHAFT, OUTPUT - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),SHAFT, OUTPUT P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

1

87757168

SHAFT

1шт.

2

8603504

ROLLER BEARING,66.67mm ID x 112.71mm OD x 30.16mm W

2шт.

3

8603211

SEAL,90mm ID x 120mm OD x 13mm Thk

2шт.

4

8604717

WASHER

2шт.

5

8603521

SCREW,Hex, M10 x 30mm

Hex, M10 x 30

4шт.

6

8603275

O-RING,4mm Thk x 48mm ID

2шт.

7

8604719

SEAL

1шт.

8

8604718

YOKE

Output, Rear

1шт.

10

REF

INSTRUCTION

OUTPUT FLANGE, See Figure 07-01

1шт.
