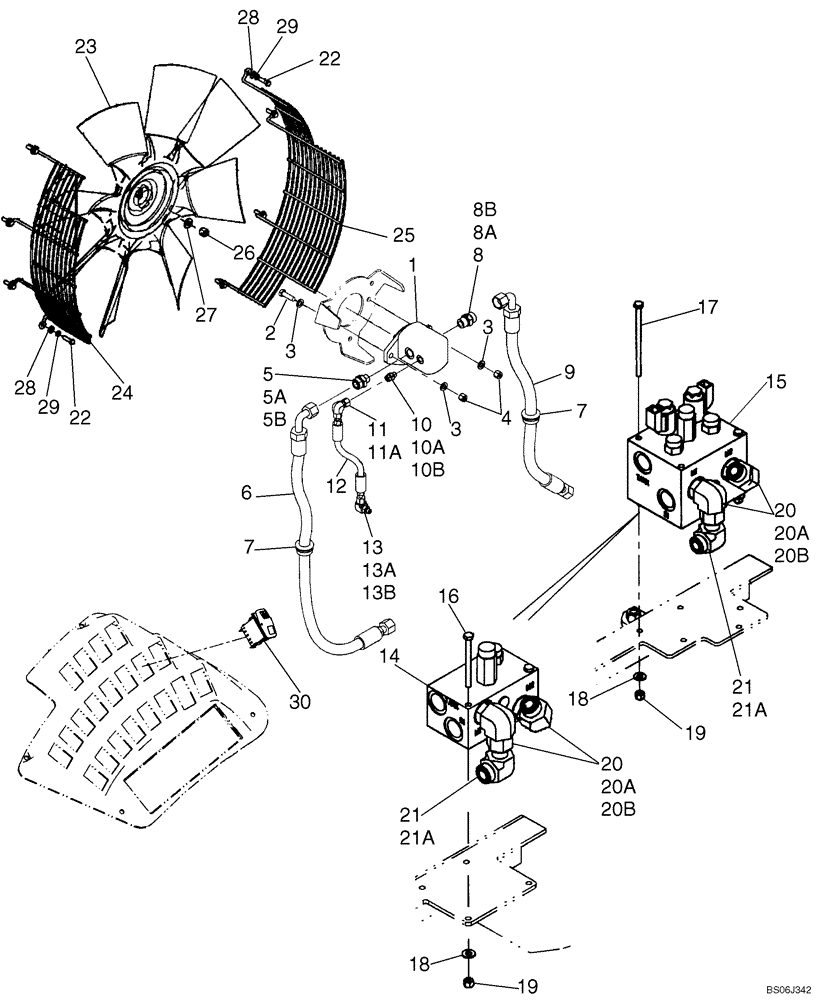

Запчасти Case 721E (02-03) - FAN DRIVE (02) - ENGINE

1

8500105

HYDRAULIC MOTOR,GEAR, 23 CC

Reversible Fan; Incl. 1A

1шт.

8500105R

REMAN-HYD MOTOR

721E TIER 3 (8/06-)

1шт.

8500105C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1a

86991683

SEAL KIT

Seal; Not Illustrated

1шт.

2

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. 5A, 5B

1шт.

5a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

87362183

HOSE ASSY.

1254mm ( 49-1/3 in ); Fan Forward

1шт.

7

8500186

GROMMET

2шт.

8

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 8A, 8B

1шт.

8a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

8b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

87362184

HOSE ASSY.

998 mm ( 39-1/4 in ); Fan Reverse

1шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 10A, 10B

1шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 11A

1шт.

11a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

12

8500183

FLEXIBLE HOSE

309 mm (12 3/16 in ); Drain

1шт.

13

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 13A, 13B

1шт.

13a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

13b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

8500562

HYDRAULIC VALVE

Fan Relief; If Used; See Figure 08-46

1шт.

15

8500565

HYDRAULIC VALVE

Fan Variable Speed And Reverser; If Used; See Figure 08-46

1шт.

16

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

17

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

2-3шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2-3шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

2-3шт.

20

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 20A, 20B

2шт.

20a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

20b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face End

1шт.

21

701-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. 21A

1шт.

21a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face End

1шт.

22

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

23

87700025

FAN,8 Blades, 711.2mm OD

Assy, Replaces 8500471

1шт.

24

87347864

GUARD

Fan

1шт.

25

87347865

GUARD

Fan

1шт.

26

232-2448

NUT,1/2"-20, GC

1шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

28

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

29

892-11008

LOCK WASHER,8mm ID

8шт.

30

87350049

SWITCH

Fan Variable Speed And Reverser

1шт.

31

121411A1

FUSE,7.5A, Mini, Brown

Not Illustrated

1шт.
