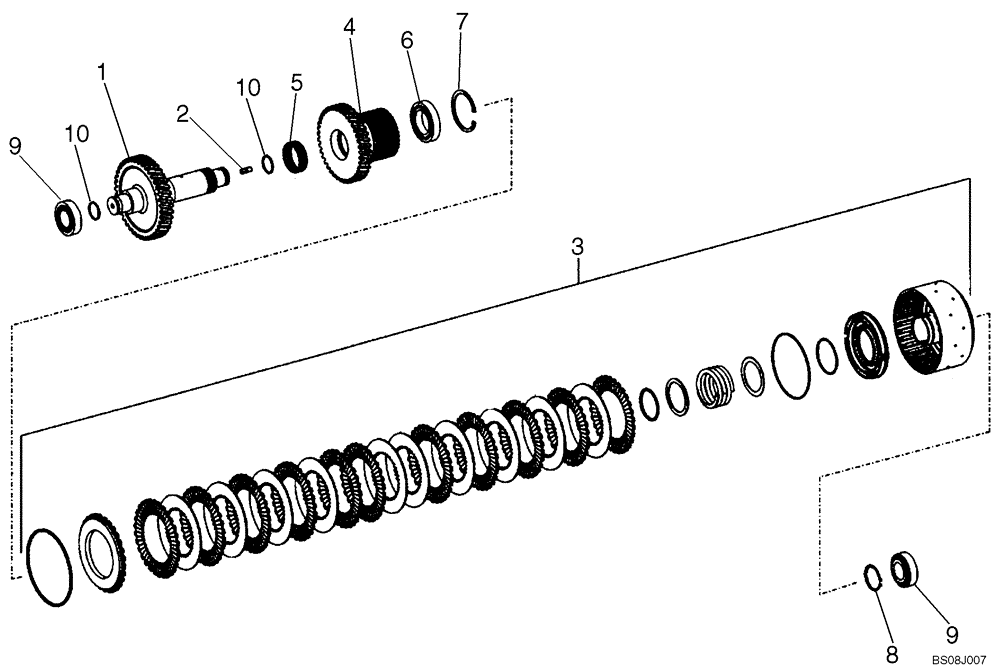

Запчасти Case 721E (06-28) - TRANSMISSION - CLUTCH ASSY, FORWARD - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - CLUTCH ASSY, FORWARD - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

1

8603516

SHAFT

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),CLUTCH ASSY, FORWARD P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

87496673

CLUTCH

Component Parts Not Serviced Separately

1шт.

4

8603518

IDLER GEAR

1шт.

5

8603450

NEEDLE BEARING CAGE

2шт.

6

8604716

BALL BEARING

2шт.

7

800-2190

SNAP RING,M90, Int

2шт.

8

8603452

CIRCLIP

1шт.

9

8603435

ROLLER BEARING

2шт.

10

8603436

PISTON RING

2шт.
