Запчасти Case 721E (06-26) - TRANSMISSION - CLUTCH ASSY, THIRD - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

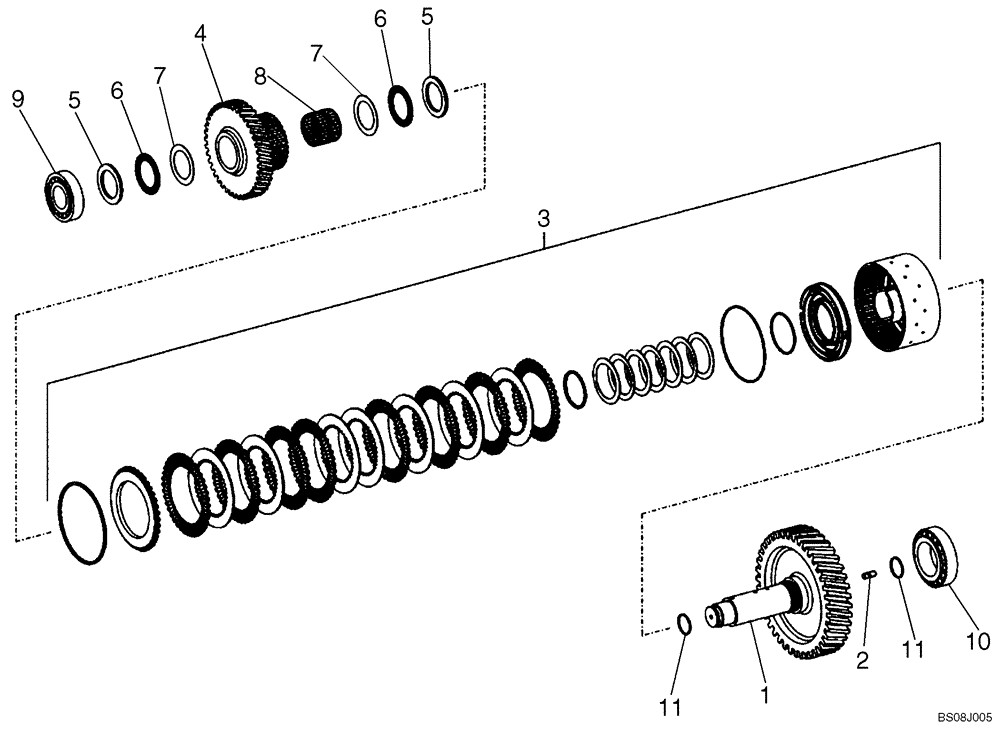

Схема запчастей Case 721E - (06-26) - TRANSMISSION - CLUTCH ASSY, THIRD - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN
2
8
3
1
9
6
4
5
7
7
10
11
6
11
5

Артикул

Название

Примечание

Количество

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - CLUTCH ASSY, THIRD - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

1

8603510

SHAFT

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),CLUTCH ASSY, THIRD P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

2

8603407

STUD

M10 x 16

1шт.

3

87496671

CLUTCH

Component Parts Not Serviced Separately

1шт.

4

8603512

IDLER GEAR

1шт.

5

8603430

DISC

2шт.

6

8603431

NEEDLE BEARING CAGE

2шт.

7

8603432

THRUST WASHER

2шт.

8

8603643

NEEDLE BEARING

1шт.

9

8603505

ROLLER BEARING,44.45mm ID x 95.25mm OD x 37.78mm W

1шт.

10

8603504

ROLLER BEARING,66.67mm ID x 112.71mm OD x 30.16mm W

1шт.

11

8603436

PISTON RING

2шт.

Выбрано товаров: 17
