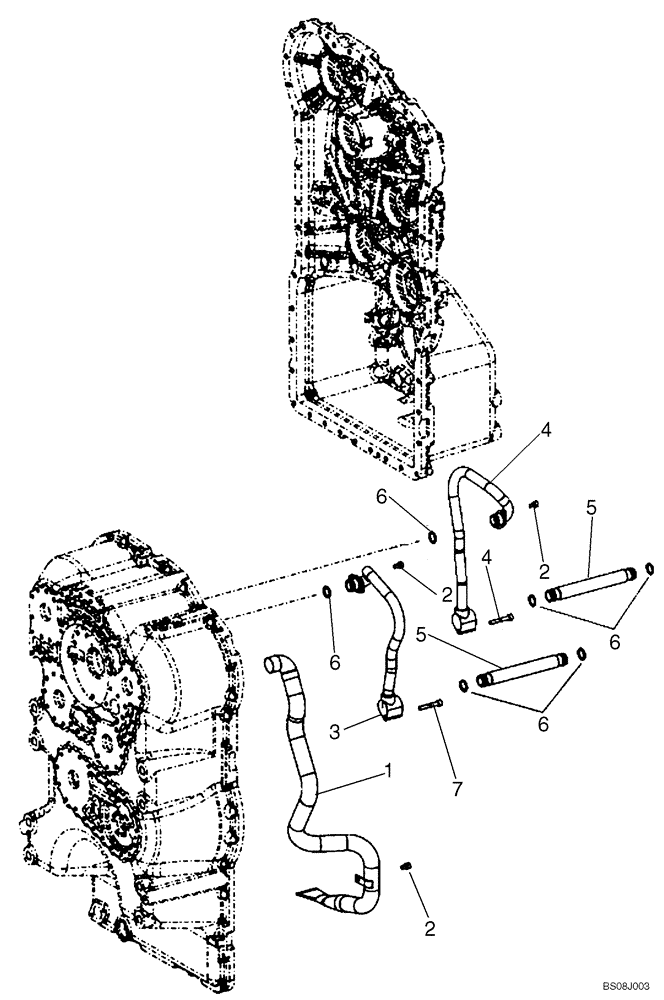

Запчасти Case 721E (06-23) - TRANSMISSION ASSY - HOUSING TUBES - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION ASSY - HOUSING TUBES - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

1

47755865

TUBE

Suction

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),HOUSING TUBES P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

2

8603306

SCREW,M8 x 12mm

M8 x 12; 8.8

3шт.

3

8604690

TUBE

Oil

1шт.

4

8604692

TUBE

Oil

1шт.

5

8603472

PIPE

2шт.

6

8603725

O-RING

Replaces 8603323 O-Ring

6шт.

7

8604691

SCREW,M8 x 50mm

M 8 x 50; 8.8

2шт.
