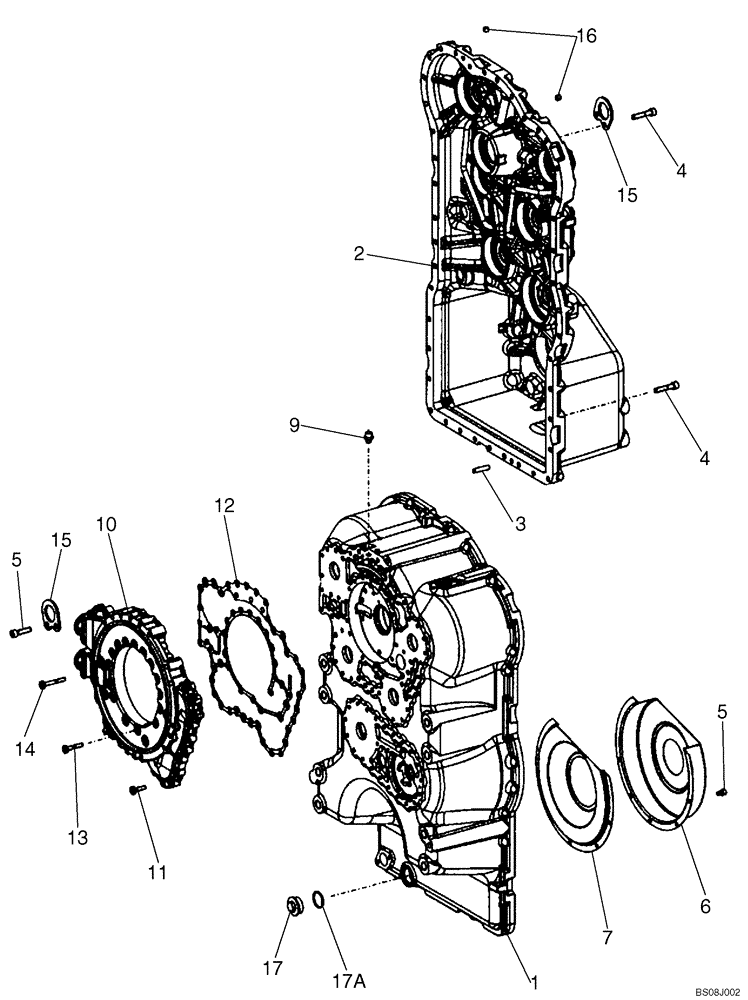

Запчасти Case 721E (06-22) - TRANSMISSION ASSY - HOUSING - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION ASSY - HOUSING - P.I.N. N8F203816 AND AFTER, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-), HOUSING P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

1

87742959

TRANSMISSION HOUSING

Front; Used On Transmission 87671889

1шт.

1

84147474

HOUSING

TRANSMISSION, Front; Used On Transmission 87738820

1шт.

2

87742962

TRANSMISSION HOUSING

Rear

1шт.

3

8604712

DOWEL

M6 x 40; Used On Transmission 87671889

2шт.

3

1493416

PIN

Straight, Cylindrical; Used On Transmission 87738820

2шт.

4

8603466

SCREW,M10 x 50mm

M10 x 50

42шт.

5

8603469

SCREW,Hex, M10 x 40mm

M10 x 40; 8.8

2шт.

6

8603468

GUARD

Gear

1шт.

7

8603467

SCREEN

1шт.

8

8603306

SCREW,M8 x 12mm

M8 x 12

5шт.

9

8603214

BREATHER

1шт.

10

87712648

HOUSING

Oil Supply

1шт.

11

8603308

SCREW

M8 x 30; 10.9

15шт.

12

8603309

GASKET

1шт.

13

8603310

SCREW,M8 x 45mm, Cl 10.9

M8 x 45; 10.9

21шт.

14

8603311

SCREW

M8 x 60; 10.9

4шт.

15

8603316

PLATE

2шт.

16

87715359

PLUG

4шт.

17

8603319

PLUG

Incl. Ref. 17A

1шт.

17a

8603318

O-RING

1шт.
