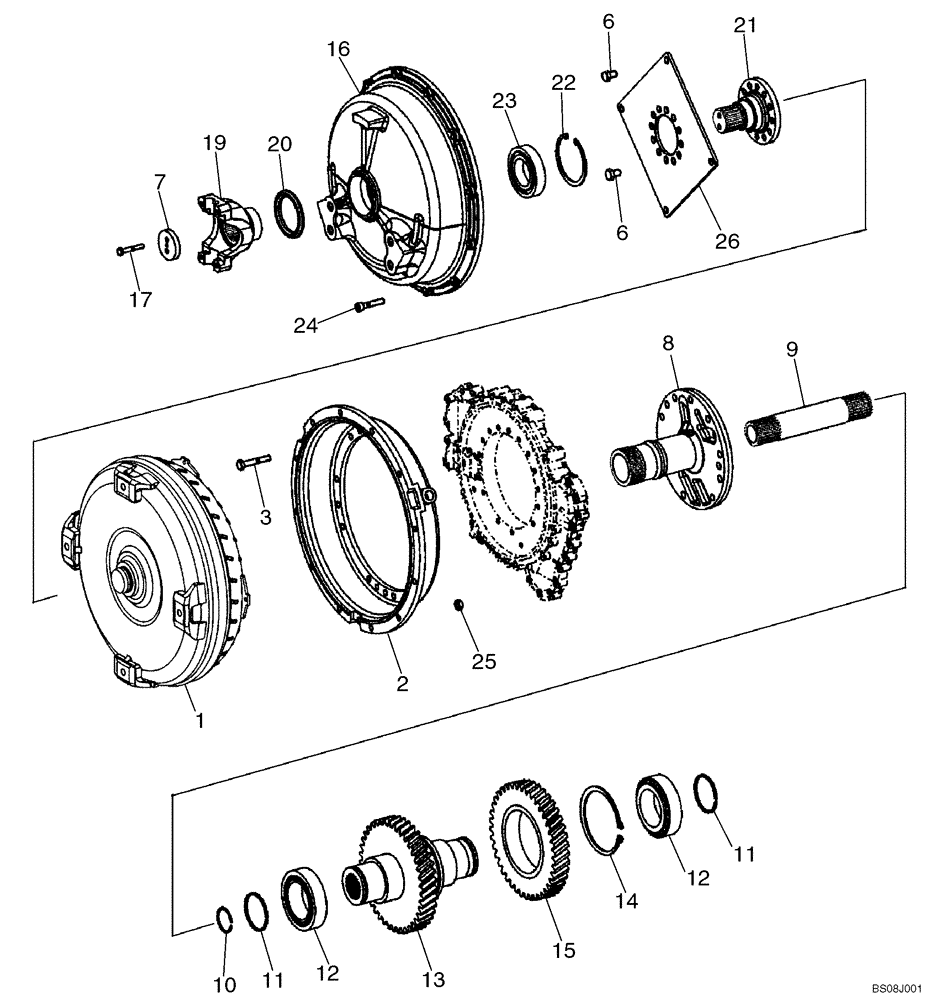

Запчасти Case 721E (06-21) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT - P.I.N. N8F203816 AND AFTER (06) - POWER TRAIN

87671889

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F203816 - N8F204594

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT - P.I.N. N8F203816, (8/06-)

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

87738820

TRANSMISSION

See Figures 06-21 -06-37, 07-01; P.I.N. N8F204595 And After

1шт.

87738820R

REMAN-TRANSMISSION

721E TIER 3 (8/06-),CONVERTER, COVER AND INPUT SHAFT P.I.N. N8F203816 AND AFTER,TRANSMISSION P.I.N N8F204595 And After

1шт.

87738820C

CORE-TRANSMISSION

Return Number

1шт.

1

87735956

TORQUE CONVERTER

1шт.

1

87735956R

REMAN-TORQUE CONVERT

ER TORQUE CONVERTER

1шт.

1

87735956C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number, TORQUE CONVERTER

1шт.

1

76081004C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

2

8603292

BELL HOUSING

1шт.

3

8603293

SCREW,Hex, M10 x 65mm

M10 x 65

18шт.

6

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

16шт.

7

8603635

WASHER

60 x 10

1шт.

8

8603778

SHAFT

Stator

1шт.

9

8603297

SHAFT

Turbine

1шт.

10

8603298

SNAP RING

1шт.

11

8603302

PISTON RING

1шт.

12

8603301

ROLLER BEARING,60mm ID x 95mm OD x 27mm W

2шт.

13

8603461

SHAFT

Input

1шт.

14

8603463

RETAINER

1шт.

15

8604706

GEAR

Input

1шт.

16

8604676

COVER

1шт.

17

8603405

BOLT,Hex, M8 x 50mm

M8 x 50; 10.9

2шт.

19

8604614

YOKE

1шт.

20

8604229

RING

1шт.

21

87712322

SHAFT

Input

1шт.

22

87410351

SNAP RING

1шт.

23

8604678

BALL BEARING

1шт.

24

8603466

SCREW,M10 x 50mm

M10 x 50; 8.8

12шт.

25

829-1510

NUT,M10, Cl 10

12шт.

26

8604228

DIAPHRAGM

1шт.
