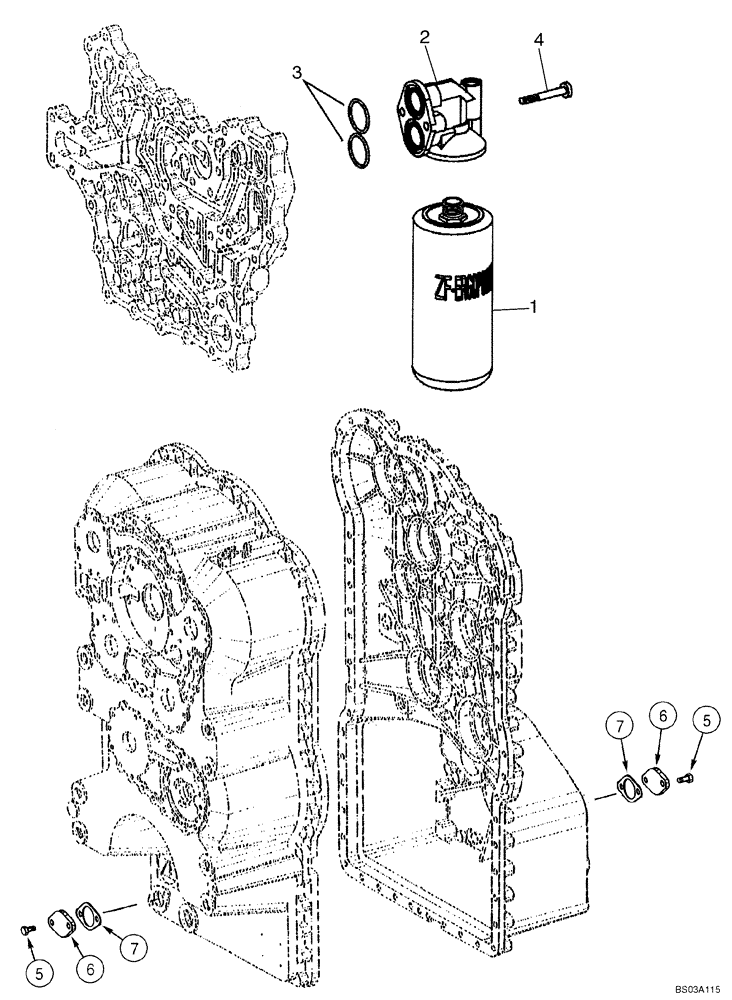

Запчасти Case 721E (06-20) - TRANSMISSION - FILTER, OIL AND FILLER COVER - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

8500050

TRANSMISSION

See Figures 06-04 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - FILTER, OIL AND FILLER COVER - PRIOR TO P.I.N. N8F203816, Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

8605548

REMAN-TRANSMISSION

721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return Number

1шт.

1

84491498

HYDRAULIC OIL FILTER

1шт.

2

8603403

FILTER HEAD

Head

1шт.

3

87712670

O-RING

Replaces 8603404

2шт.

4

8603311

SCREW

2шт.

5

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

4шт.

6

8603217

COVER

2шт.

7

8603281

GASKET

2шт.
