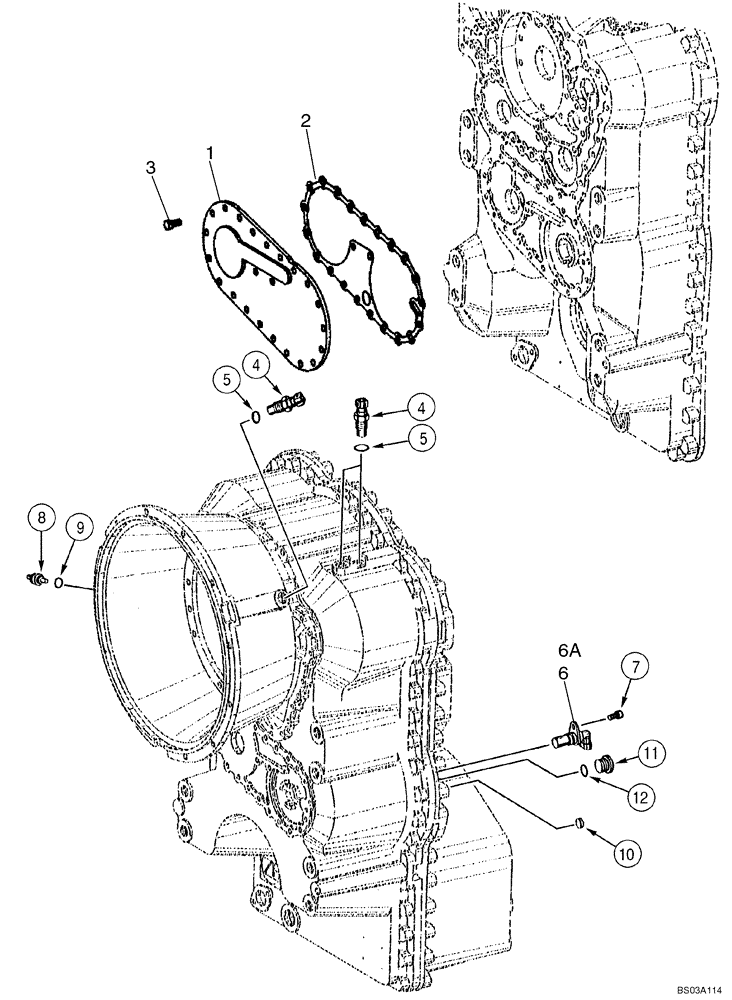

Запчасти Case 721E (06-19) - TRANSMISSION - SENSOR, SPEED AND PUMP COVER - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

8500050

TRANSMISSION

See Figures 06-04 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - SENSOR, SPEED AND PUMP COVER - PRIOR TO P.I.N. N8F203816, Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

8605548

REMAN-TRANSMISSION

721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return Number

1шт.

1

8603393

COVER

Steering Pump

1шт.

2

8603395

GASKET

1шт.

3

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

23шт.

4

8603397

SENSOR

Inductive Coupling

3шт.

5

8603216

O-RING,2mm Thk x 15mm ID

3шт.

6

8603398

SENSOR

Speed, Output; Incl. 6A

1шт.

6a

8603629

O-RING

1шт.

7

8603399

SCREW,M8 x 16mm

1шт.

8

8603622

SENSOR

Temperature; Incl. 9

1шт.

9

8603402

O-RING

1шт.

10

641-3320

PLUG,M20, Conical

1шт.

11

8603270

PLUG

18 x 1,5 mm; Incl. 12

1шт.

12

8603216

O-RING,2mm Thk x 15mm ID

1шт.
