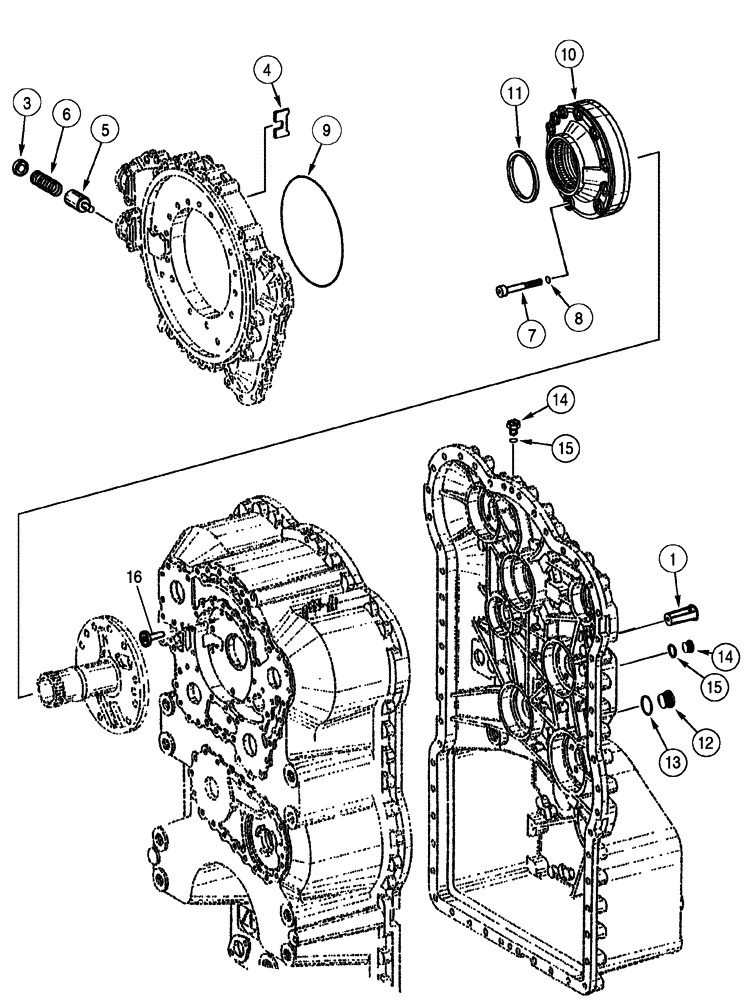

Запчасти Case 721E (06-18) - TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

8500050

TRANSMISSION

See Figures 06-04 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - VALVE, REGULATOR AND OIL PUMP - PRIOR TO P.I.N. N8F203816, Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

1

8603378

VALVE

1шт.

8605548

REMAN-TRANSMISSION

721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return Number

1шт.

3

8603380

SPRING SEAT

Pressure

1шт.

4

8603381

PLATE

1шт.

5

8603382

PISTON

1шт.

6

8603383

SPRING

1шт.

7

8603384

SCREW

Incl. 8

10шт.

8

8603385

O-RING

10шт.

9

87712668

O-RING,184.5" ID x 3" Width

Replaces 8603386

1шт.

10

87446110

PUMP, HYDRAULIC

Oil Pressure; Replaces 8603464, Incl. Ref. 11

1шт.

11

8603391

SEAL

1шт.

12

8603400

PLUG

Incl. 17

1шт.

16

8603401

O-RING,2mm Thk x 23mm ID

1шт.

14

8603357

PLUG

Incl. 19

2шт.

15

8603358

O-RING,2mm Thk x 13mm ID

2шт.

16

8603779

VALVE PRESSURE RELIE

1шт.
