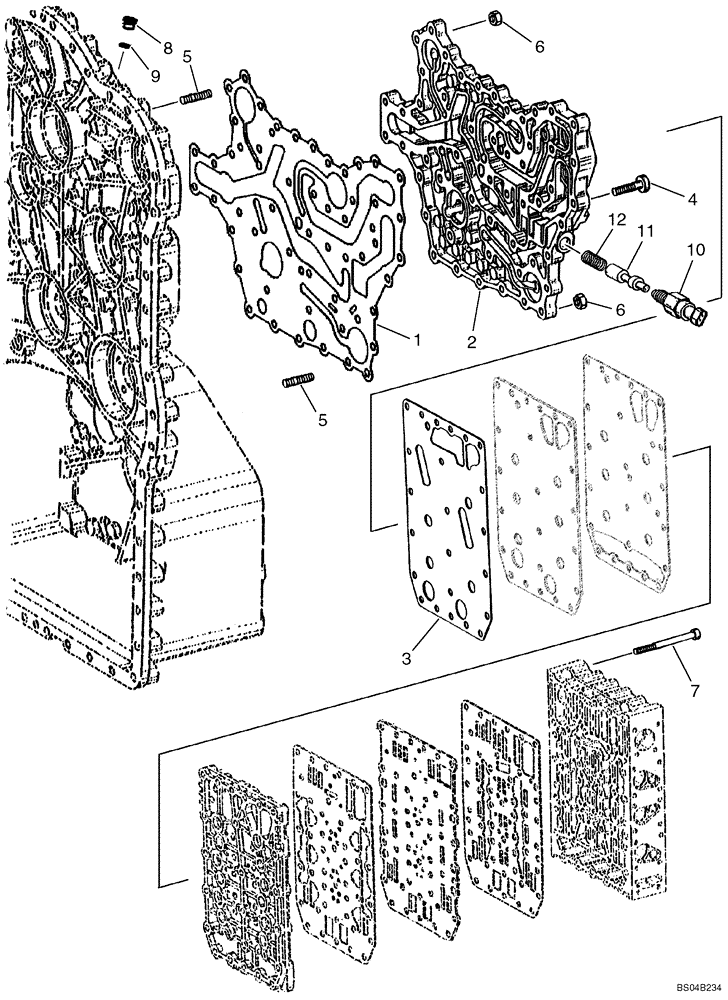

Запчасти Case 721E (06-15) - TRANSMISSION - VALVE PLATES - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

8500050

TRANSMISSION

See Figures 06-04 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - VALVE PLATES - PRIOR TO P.I.N. N8F203816, Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

8605548

REMAN-TRANSMISSION

721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return Number

1шт.

1

8603804

GASKET

1шт.

2

8603805

PLATE

1шт.

3

8603180

SHEET

1шт.

4

8603308

SCREW

36шт.

5

8603641

STUD

M8 x 25

14шт.

6

8603315

NUT

M8

14шт.

7

8603182

SCREW,M6 x 76mm

23шт.

8

8603400

PLUG

Incl. 9

1шт.

9

8603401

O-RING,2mm Thk x 23mm ID

1шт.

10

8603537

SWITCH

Filter Maintenance

1шт.

11

8603533

PISTON

1шт.

12

8603534

SPRING

1шт.
