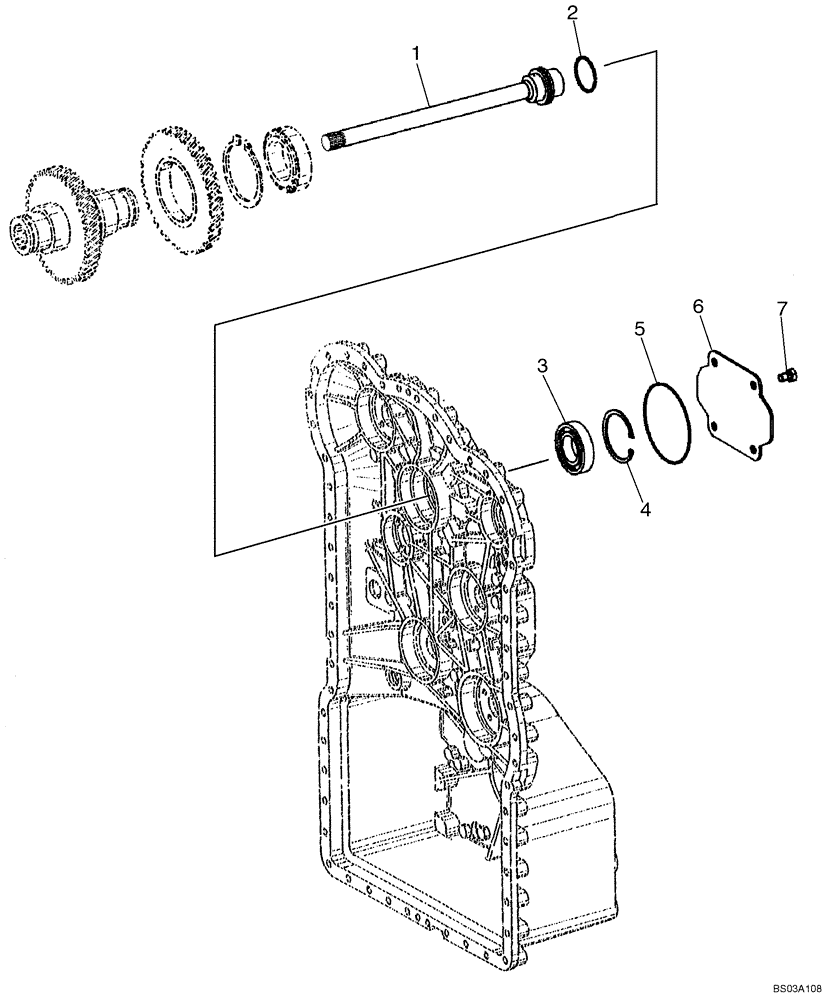

Запчасти Case 721E (06-14) - TRANSMISSION - POWER TAKE OFF - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

8500050

TRANSMISSION

See Figures 06-04 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - POWER TAKE OFF - PRIOR TO P.I.N. N8F203816, Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

8605548

REMAN-TRANSMISSION

721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return Number

1шт.

1

8603525

SHAFT

Pump

1шт.

2

8603302

PISTON RING

1шт.

3

8603353

BALL BEARING

1шт.

4

8603354

CIRCLIP

1шт.

5

8603527

O-RING

1шт.

6

8603526

COVER

1шт.

7

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

4шт.
