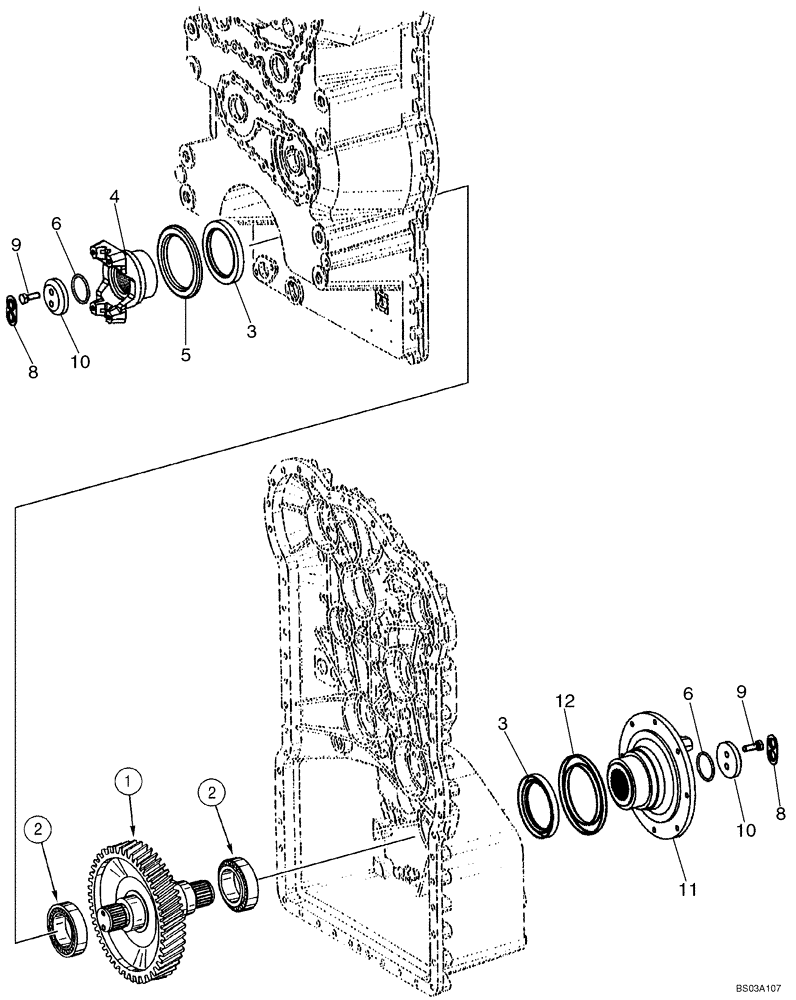

Запчасти Case 721E (06-13) - TRANSMISSION - SHAFT, OUTPUT - PRIOR TO P.I.N. N8F203816 (06) - POWER TRAIN

8500050

TRANSMISSION

See Figures 06-04 - 06-20, 07-01; Prior To P.I.N. N8F203816

1шт.

87671889R

REMAN-TRANSMISSION

721E TIER 3, TRANSMISSION - SHAFT, OUTPUT - PRIOR TO P.I.N. N8F203816, Reman For New P/N 8500050

1шт.

87671889C

CORE-TRANSMISSION

Return Number

1шт.

8605548

REMAN-TRANSMISSION

721D, Model Number 4WG190, Stock Number 4657 024 030

1шт.

8605547

CORE-TRANSMISSION

Return Number

1шт.

1

8603520

SHAFT

1шт.

2

8603504

ROLLER BEARING,66.67mm ID x 112.71mm OD x 30.16mm W

2шт.

3

8603211

SEAL,90mm ID x 120mm OD x 13mm Thk

2шт.

4

8604718

YOKE

Output; Rear

1шт.

5

8604719

SEAL

Seal

1шт.

6

8603275

O-RING,4mm Thk x 48mm ID

2шт.

7

8604719

SEAL

Not Illustrated

2шт.

8

8603212

WASHER

2шт.

9

8603521

SCREW,Hex, M10 x 30mm

Hex, M10 x 30

4шт.

10

8604717

WASHER

2шт.

11

8604720

FLANGE

Ouput; For Parking Brake Assembly; See Figure 07-01

1шт.

12

8604721

SEAL

Screen Sheet Seal

1шт.
